Use block as property

3 min

Blocks in Optimizely Content Management System (CMS) are reusable smaller content parts that editors can add to other content types. You also can use blocks in code as properties, as an instance, or in a list, which is a convenient way to reuse a set of properties in multiple instances.

Blocks can only be rendered in the context of other content, such as a page. A block instance is part of a page instance (if a PageType or BlockType contains an instance, list property of the block type), or a shared instance. When a block is used as a property on a page, it is stored, loaded, and versioned with that page.

Add a block as a property

This section assumes that you have an existing page type, Standard Page, to which you want to add an existing block type, Teaser Block. The page type has a Main body property of type XhtmlString. The block has a Heading property of type String, and an Image property of type ContentReference.

The setting AvailableInEditMode can be set on ContentTypeAttribute for block types if they are only intended to be used as properties. Then, they will not display as available options for editors when creating shared block instances.

In the example below, you add the block as a property to the page type and update the corresponding view for the page type to display the block as a property.

Example: The Teaser Block block type.

using System;
using System.ComponentModel.DataAnnotations;
using EPiServer.Core;
using EPiServer.DataAbstraction;
using EPiServer.DataAnnotations;
using EPiServer.Web;

namespace MyOptimizelySite.Models.Blocks {
  [ContentType(DisplayName = "TeaserBlock", GUID = "38d57768-e09e-4da9-90df-54c73c61b270", Description = "Heading and image.")]
  public class TeaserBlock: BlockData {
    [CultureSpecific]
    [Display(
      Name = "Heading",
      Description = "Add a heading.",
      GroupName = SystemTabNames.Content,
      Order = 1)]
    public virtual String Heading {
      get;
      set;
    }

    [Display(
      Name = "Image", Description = "Add an image (optional)",
      GroupName = SystemTabNames.Content,
      Order = 2)]
    public virtual ContentReference Image {
      get;
      set;
    }
  }
}

Example: The Standard Page page type with Teaser Block added as a property.

using System;
using System.ComponentModel.DataAnnotations;
using EPiServer.Core;
using EPiServer.DataAbstraction;
using EPiServer.DataAnnotations;
using EPiServer.SpecializedProperties;
using MyOptimizelySite.Models.Blocks;

namespace MyOptimizelySite.Models.Pages {
  [ContentType(GroupName = "Basic pages", Order = 1, DisplayName = "StandardPage", GUID = "abad391c-5563-4069-b4db-1bd94f7a1eea",
    Description = "To be used for basic content pages.")]
  public class StandardPage: SitePageData {
    [CultureSpecific]
    [Display(
      Name = "Main body",
      Description = "The main body for inserting for example text, images and tables.",
      GroupName = SystemTabNames.Content,
      Order = 1)]
    public virtual XhtmlString MainBody {
      get;
      set;
    }

    [Display(Order = 5, GroupName = SystemTabNames.Content)]
    public virtual TeaserBlock Teaser {
      get;
      set;
    }
  }
}

Example: The view for the Standard Page.

@using EPiServer.Core
@using EPiServer.Web.Mvc.Html
@model MyOptimizelySite.Models.Pages.StandardPage
  <div>
    @Html.PropertyFor(m => m.MainBody)
    @Html.PropertyFor(m => m.Teaser)
  </div>

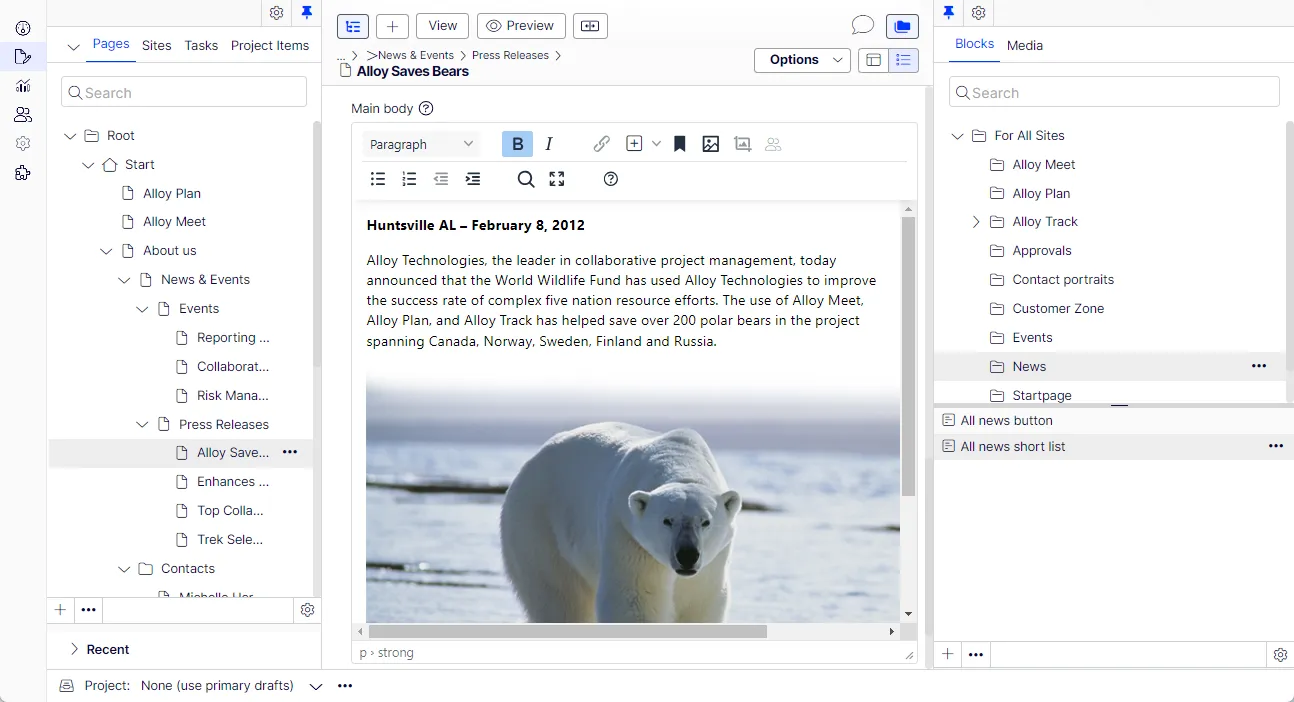

When editing a page based on Standard Page page type, the result is in the All Properties editing view.

Note The functionality "Fetch content from another content item" will only apply when a property is considered "Null". For a block property this means that all properties within the block must be null for fetch content to apply. This can be an issue if the block contains a primitive type, such as a bool, nullable bool, int or nullable int, and that has a value. It is currently not possible to set a null value for those properties from the edit UI, meaning that if such a block property has a value it cannot be "nulled" from the user interface to get fetching data to apply. This can be solved by either a custom editor that can set null value as well or by having an event handler to IContentEvents.PublishingContent and in the event handler set the value to null if it is default value (false for a bool/nullable boolean or 0 for an int/nullable int).
