Improve publishing with inline edit blocks

18 min

CMS UI 12.22.3 and newer

Inline blocks are turned off by default, but from version 12.22.3, you can opt-in so that whenever you create a new block from a ContentArea property, you create an inline block stored inside the parent content item.

Inline blocks are no longer IContent instances. Instead, they are just property bags stored inside ContentAreaItem.

Inline blocks do not have a Name or ContentLink or other base properties.

For example, if there is a block type defined in the following way:

[ContentType(Guid = "67F617A4-2175-4360-975E-75EDF2B924A7")]
public class TeaserBlock: BlockData {
  public virtual string Foo {
    get;
    set;
  }
}

If you add an instance of TeaserBlock to the Assets panel as a shared block then it has the properties implemented from IContent such as Name, ID, and so on.

However, if you decide to add TeaserBlock through Create a new block link in Content Area, then it prompts the editor to enter the value for the Foo string property and serializes that object and stores it inside the ContentAreaItem.InlineBlock property.

It does not have ContentLink of its own. It does not have a publishing or approval lifecycle of its own but will be managed only through its parent content.

You cannot differentiate inline blocks; they are just shown as block types.

Caution ``InlineBlockEditSettings` is being obsoleted and will be removed in CMS 13.

ILocalAssetNameGeneratordoes not influence Inline Blocks because, as stated above, inline blocks do not have Name property on their own.

Inline blocks are convenient in on-page editing. However, it can be difficult to distinguish them in All Properties view because those blocks are no longer IContent and thus have no Name property on their own.

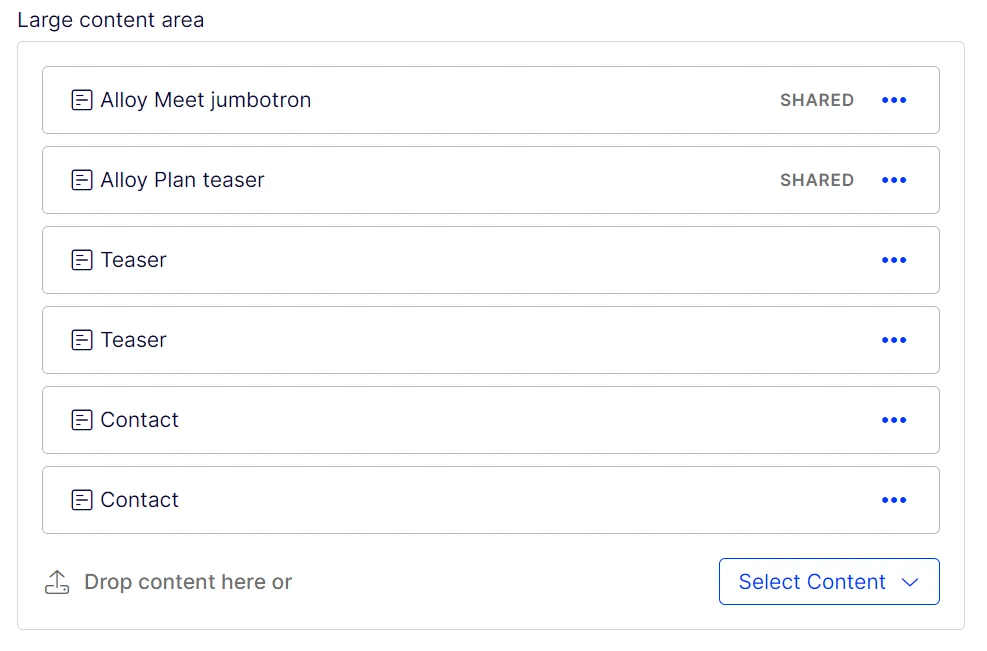

Inline block labels are their type names, which is fine if there are just a few, but if the list of blocks is long, it may become problematic to find the block you want to edit (because, in contrast to the on-page editing, you do not see the view of the block). You can instruct ContentArea to use a specific property from block type as a label by using the InlineBlockNameProperties options which can be set in appsettings.json:

{
  "EPiServer": {
    "CmsUI": {
      "InlineBlockNameProperties": {
        "Contact": "Heading",
        "Teaser": "Heading"
      }
    }
  }
}

Or in Startup.cs

services.Configure<InlineBlockNamePropertiesOptions>(options => {
  options.Add("Contact", "Heading");
  options.Add("Teaser", "Heading");
});

It is a Dictionary\<string, string> of BlockTypeName / PropertyName.

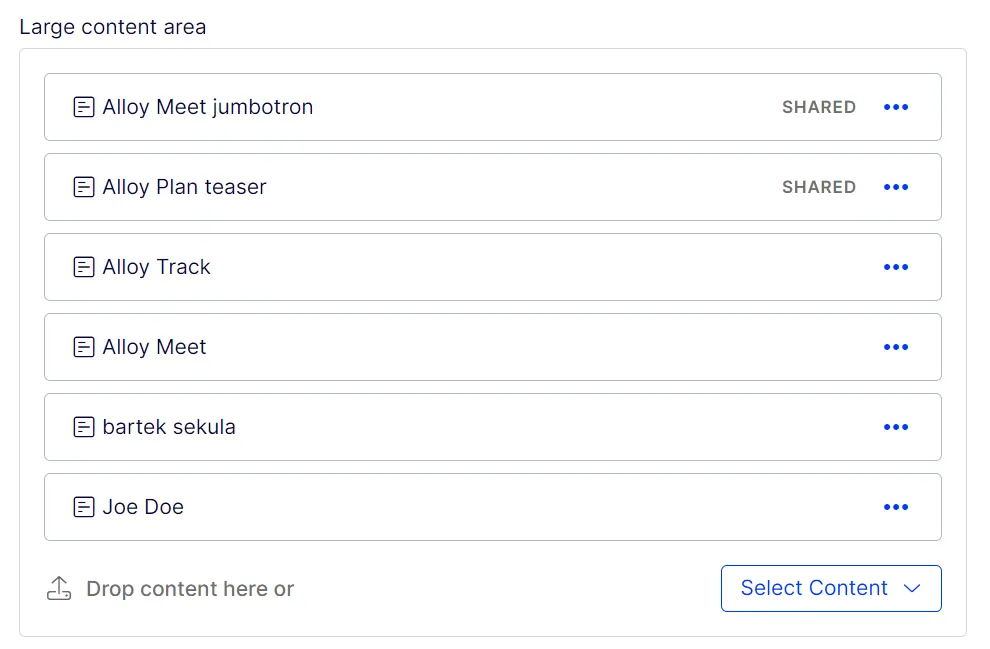

After adding those options the ContentArea looks like this:

This is because you instructed the ContentArea editor to use Heading property as label for Contact & Teaser block types.

Opt-in to inline blocks

In version 12.22.3, you can turn on the ability to create inline blocks from ContentArea by using UIOptions.

services.Configure<UIOptions>(uiOptions => {
  uiOptions.InlineBlocksInContentAreaEnabled = true;
});

You also can opt-in from appsettings.json.

{
  "EPiServer": {
    "CmsUI": {
      "UI": {
        "InlineBlocksInContentAreaEnabled": true
      }
    }
  }
}

After turning that flag on, the link to Create a new block creates blocks inline to the parent ContentArea property, potentially creating a version of the current content item.

Create inline blocks programmatically

While inline blocks are typically created and managed through the Optimizely CMS editorial interface, there are scenarios where you want to create them programmatically. This section outlines how to create and assign inline blocks using C# code.

Remember that inline blocks are not standalone IContent instances. Instead, they are BlockData objects embedded directly within a property of a parent content item (for instance, a page or another block). Their lifecycle is tied to the parent content item.

Prerequisites

For the following examples, assume you have the following content types defined in your project:

using EPiServer.Core;
using EPiServer.DataAbstraction;
using EPiServer.DataAnnotations;
using EPiServer.Web; // For UIHint

namespace MyProject.Business.InlineBlocks
{
    // A simple block type intended for inline use
    [ContentType(DisplayName = "Simple Inline Block", GUID = "A1B2C3D4-E5F6-7890-1234-567890ABCDEF",
        Description = "A basic block for demonstrating inline creation.")]
    public class SimpleInlineBlock : BlockData
    {
        [Display(Name = "Title", Order = 10)]
        public virtual string Title { get; set; }

        [Display(Name = "Description", Order = 20)]
        public virtual string Description { get; set; }
    }

    // A page type that contains properties capable of holding inline blocks
    [ContentType(DisplayName = "Page With Inline Blocks", GUID = "B1C2D3E4-F5G6-7890-1234-567890ABCDEF",
        Description = "A page type to demonstrate programmatic inline block assignment.")]
    public class PageWithInlineBlocks : PageData
    {
        // A single property for an inline block (BlockData type)
        [Display(Name = "My Single Inline Block", Order = 100)]
        public virtual SimpleInlineBlock MySingleInlineBlock { get; set; }

        // A ContentArea property that can contain inline blocks or referenced blocks
        [Display(Name = "My Content Area", Order = 200)]
        public virtual ContentArea MyContentArea { get; set; }
    }
}

You will also need to inject IContentRepository and IContentTypeRepository into your service or class where you perform these operations.

using EPiServer.Core;
using EPiServer.DataAbstraction;
using EPiServer.ServiceLocation; // For ServiceLocator.Current.GetInstance
using EPiServer.DataAccess; // For SaveAction
using System;
using System.Collections.Generic;

namespace MyProject.Business.InlineBlocks
{
    public class InlineBlockCreationExamples
    {
        private readonly IContentRepository _contentRepository;
        private readonly IContentTypeRepository _contentTypeRepository;

        public InlineBlockCreationExamples()
        {
            _contentRepository = ServiceLocator.Current.GetInstance<IContentRepository>();
            _contentTypeRepository = ServiceLocator.Current.GetInstance<IContentTypeRepository>();
        }

        // ... (Example methods below)
    }
}

1. Assign an inline block to a direct property

Use this method when a content type has a property explicitly defined as a BlockData type (for instance, public virtual SimpleInlineBlock MySingleInlineBlock { get; set; }).

        /// <summary>
        /// Creates an instance of SimpleInlineBlock and assigns it to the 'MySingleInlineBlock'
        /// property of a 'PageWithInlineBlocks' page.
        /// </summary>
        /// <param name="parentPageLink">The ContentReference of the parent page.</param>
        public void CreateAndAssignSingleInlineBlock(ContentReference parentPageLink)
        {
            // 1. Retrieve the existing parent page in writable mode
            var page = _contentRepository.Get<PageWithInlineBlocks>(parentPageLink).CreateWritableClone() as PageWithInlineBlocks;
            if (page == null)
            {
                Console.WriteLine($"Error: Parent page with ID {parentPageLink.ID} not found or not of type PageWithInlineBlocks.");
                return;
            }

            // 2. Instantiate your inline block type
            var newInlineBlock = new SimpleInlineBlock
            {
                Title = "Programmatically Created Title",
                Description = "This is a description for an inline block created via code."
            };

            // 3. Assign the inline block instance directly to the property on the parent page
            page.MySingleInlineBlock = newInlineBlock;

            // 4. Save the parent page. This action automatically saves the inline block along with the page.
            _contentRepository.Save(page, SaveAction.Publish, EPiServer.Security.AccessLevel.Publish);

            Console.WriteLine($"Successfully created and assigned SimpleInlineBlock to page '{page.Name}' (ID: {page.ContentLink.ID}).");
        }

2. Add an inline block to a ContentArea property

ContentArea properties can hold both referenced blocks (standalone IContent items) and inline blocks. To add an inline block, you create a ContentAreaItem where the Content property holds the BlockData instance, and ContentLink is left null.

The following example creates an instance of SimpleInlineBlock and adds it as an inline block to the MyContentArea property of a PageWithInlineBlocks page.

        /// <param name="parentPageLink">The ContentReference of the parent page.</param>
        public void AddInlineBlockToContentArea(ContentReference parentPageLink)
        {
            // 1. Retrieve the existing parent page in writable mode
            var page = _contentRepository.Get<PageWithInlineBlocks>(parentPageLink).CreateWritableClone() as PageWithInlineBlocks;
            if (page == null)
            {
                Console.WriteLine($"Error: Parent page with ID {parentPageLink.ID} not found or not of type PageWithInlineBlocks.");
                return;
            }

            // 2. Ensure the ContentArea exists and is initialized
            if (page.MyContentArea == null)
            {
                page.MyContentArea = new ContentArea();
            }

            // 3. Instantiate your inline block type
            var newInlineBlock = new SimpleInlineBlock
            {
                Title = "ContentArea Inline Block Title",
                Description = "This block was added to a ContentArea programmatically."
            };

            // 4. Create a ContentAreaItem for the inline block.
            //    For inline blocks, assign the BlockData instance to the 'Content' property.
            //    The 'ContentLink' property remains null.
            var contentAreaItem = new ContentAreaItem
            {
                Content = newInlineBlock,
                // Optionally, you can set a DisplayOption if your site uses them
                // DisplayOption = "FullWidth"
            };

            // 5. Add the new ContentAreaItem to the ContentArea's existing items
            var contentAreaItems = new List<ContentAreaItem>(page.MyContentArea.Items ?? new List<ContentAreaItem>());
            contentAreaItems.Add(contentAreaItem);
            page.MyContentArea.Items = contentAreaItems;

            // 6. Save the parent page. This action saves the ContentArea and its embedded inline block.
            _contentRepository.Save(page, SaveAction.Publish, EPiServer.Security.AccessLevel.Publish);

            Console.WriteLine($"Successfully added SimpleInlineBlock to ContentArea of page '{page.Name}' (ID: {page.ContentLink.ID}).");
        }

3. Distinguishing from referenced blocks in ContentArea

It is crucial to understand the difference between adding an inline block to a ContentArea and adding a reference to a standalone block.

Inline block – The BlockData instance is embedded directly within the ContentAreaItem.Content property. It has no ContentLink and no independent existence in the content tree.

Referenced block – The ContentAreaItem.ContentLink property points to an existing IContent block that lives independently in the content tree.

The following example demonstrates how to add a reference to an existing standalone block to a ContentArea property. This is NOT an inline block.

        /// <param name="parentPageLink">The ContentReference of the parent page.</param>
        /// <param name="existingBlockLink">The ContentReference of an already existing standalone block.</param>
        public void AddExistingBlockReferenceToContentArea(ContentReference parentPageLink, ContentReference existingBlockLink)
        {
            // 1. Retrieve the existing parent page in writable mode
            var page = _contentRepository.Get<PageWithInlineBlocks>(parentPageLink).CreateWritableClone() as PageWithInlineBlocks;
            if (page == null)
            {
                Console.WriteLine($"Error: Parent page with ID {parentPageLink.ID} not found or not of type PageWithInlineBlocks.");
                return;
            }

            // 2. Ensure the ContentArea exists and is initialized
            if (page.MyContentArea == null)
            {
                page.MyContentArea = new ContentArea();
            }

            // 3. Create a ContentAreaItem referencing the existing standalone block.
            //    Assign the ContentReference to the 'ContentLink' property.
            var contentAreaItem = new ContentAreaItem
            {
                ContentLink = existingBlockLink, // Reference to the standalone block
                // Optionally, you can set a DisplayOption
                // DisplayOption = "HalfWidth"
            };

            // 4. Add the new ContentAreaItem to the ContentArea's existing items
            var contentAreaItems = new List<ContentAreaItem>(page.MyContentArea.Items ?? new List<ContentAreaItem>());
            contentAreaItems.Add(contentAreaItem);
            page.MyContentArea.Items = contentAreaItems;

            // 5. Save the parent page.
            _contentRepository.Save(page, SaveAction.Publish, EPiServer.Security.AccessLevel.Publish);

            Console.WriteLine($"Successfully added reference to existing block (ID: {existingBlockLink.ID}) to ContentArea of page '{page.Name}' (ID: {page.ContentLink.ID}).");
        }

Manage multilingual sites with inline blocks

Understanding how inline blocks interact with translations and [CultureSpecific] properties helps you to manage multilingual sites. Since inline blocks are stored directly within their parent content item and are not separate IContent instances, their globalization behavior is intrinsically linked to the parent.

Translations

Properties within an inline block are translated as part of the parent content item. When you create a new language version of a page or block that contains an inline block, the inline block's properties will also be duplicated for translation in that new language version.

There is no separate publishing or approval workflow for inline blocks across different languages; their lifecycle is entirely managed through the parent content item.

Editors translate the inline block's properties directly within the context of the parent content item's language version.

[CultureSpecific] properties

The [CultureSpecific] attribute functions for properties defined within an inline block.

If a property inside an inline block is marked with [CultureSpecific], its value can be unique for each language version of the parent content item. Changes to this property in one language will not affect other language versions.

If a property inside an inline block is not marked with [CultureSpecific], its value will be shared across all language versions of the parent content item. A change to this property in one language will propagate to all other language versions. This is important to consider for properties like images, IDs, or configuration settings that might be universal across cultures.

Consider a HeroBlock used as an inline block within a StandardPage.

// HeroBlock.cs
[ContentType(DisplayName = "Hero Block", GUID = "...", Description = "")]
public class HeroBlock : BlockData
{
    [CultureSpecific]
    [Display(Name = "Headline", Order = 10)]
    public virtual string Headline { get; set; }

    [Display(Name = "Background Image", Order = 20)]
    [UIHint(UIHint.Image)]
    public virtual ContentReference BackgroundImage { get; set; }
}

If StandardPage has English and Swedish versions:

The Headline property of the HeroBlock can have different values for the English and Swedish versions of the StandardPage because it is [CultureSpecific].

The BackgroundImage property of the HeroBlock will be the same for both English and Swedish versions of the StandardPage because it is not [CultureSpecific]. If an editor changes the BackgroundImage on the English page, the Swedish page will also show the new image.

CMS UI 12.20.0 and earlier

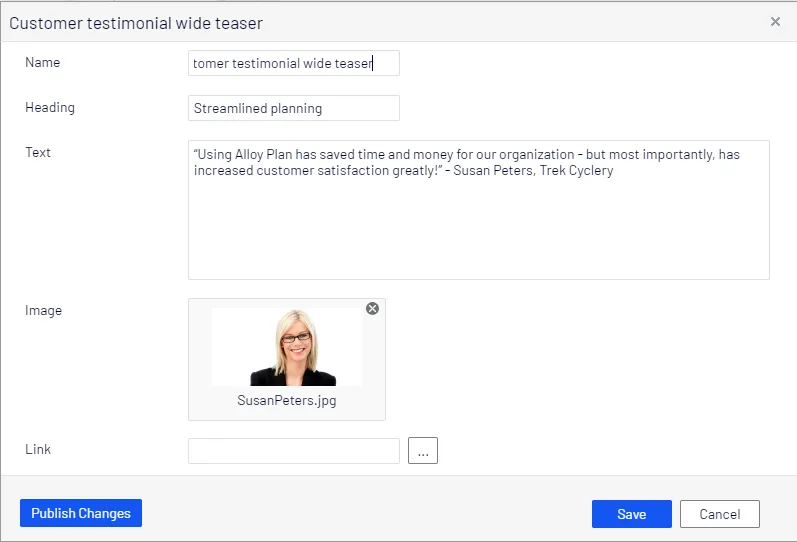

The inline edit dialog box is designed to be simple while letting editors edit a block's most common properties.

Optimizely introduced the InlineBlockEditSettings configuration attribute so that you can apply it to your block content type and hide or show the Name and Categories properties. You can also use this attribute to hide specific groups to make the editing form cleaner.

The attribute contains three properties:

Property	Default value	Description
ShowNameProperty	false	When true, then the Name property is displayed.
ShowCategoryProperty	false	When true, then the Categories property is displayed.
HiddenGroups	Advanced	Comma-separated list of tabs that should be hidden.

Note Advanced group is the Settings tab in the user interface, which is hidden by default in the inline edit dialog box.

Change settings for a specific block content type

To turn on the Name property for a specific block content type:

[SiteContentType(GUID = "67F617A4-2175-4360-975E-75EDF2B924A7",
  GroupName = SystemTabNames.Content)]
[SiteImageUrl]
[InlineBlockEditSettings(ShowNameProperty = true)]
public class EditorialBlock: SiteBlockData {
  [Display(GroupName = SystemTabNames.Content)]
  [CultureSpecific]
  public virtual XhtmlString MainBody {
    get;
    set;
  }
}

Below is to display the Name and Categories properties and Settings group:

[SiteContentType(GUID = "9E7F6DF5-A963-40C4-8683-211C4FA48AE1")]
[SiteImageUrl]
[InlineBlockEditSettings(ShowNameProperty = true, ShowCategoryProperty = true, HiddenGroups = "")]
public class AdvancedBlock: SiteBlockData {
  [Display(Order = 1, GroupName = SystemTabNames.Content)]
  public virtual string Text1 {
    get;
    set;
  }

  [Display(Order = 2, GroupName = SystemTabNames.Content)]
  public virtual string Text2 {
    get;
    set;
  }

  [Display(Order = 1, GroupName = Global.GroupNames.Products)]
  public virtual string Text3 {
    get;
    set;
  }

  [Display(Order = 2, GroupName = Global.GroupNames.Products)]
  public virtual string Text4 {
    get;
    set;
  }
}

To hide more than one group:

[SiteContentType(GUID = "9E7F6DF5-A963-40C4-8683-211C4FA48AE1")]
[SiteImageUrl]
[InlineBlockEditSettings(HiddenGroups = "Advanced, Contact")]
public class AdvancedBlock: SiteBlockData {
  [Display(Order = 1, GroupName = SystemTabNames.Content)]
  public virtual string Text1 {
    get;
    set;
  }

  [Display(Order = 2, GroupName = SystemTabNames.Content)]
  public virtual string Text2 {
    get;
    set;
  }

  [Display(Order = 1, GroupName = Global.GroupNames.Products)]
  public virtual string Text3 {
    get;
    set;
  }

  [Display(Order = 2, GroupName = Global.GroupNames.Contact)]
  public virtual string Text4 {
    get;
    set;
  }
}

Change settings for multiple block content types

If you want to show Name for several block content types, you can configure the setting in their base class, like this:

[InlineBlockEditSettings(ShowNameProperty = true)]
public abstract class SiteBlockData: EPiServer.Core.BlockData {}

[SiteContentType(GUID = "9E7F6DF5-A963-40C4-8683-211C4FA48AE1")]
[SiteImageUrl]
public class AdvancedBlock: SiteBlockData {
  [Display(Order = 1, GroupName = SystemTabNames.Content)]
  public virtual string Text1 {
    get;
    set;
  }

  [Display(Order = 2, GroupName = SystemTabNames.Content)]
  public virtual string Text2 {
    get;
    set;
  }

  [Display(Order = 1, GroupName = Global.GroupNames.Products)]
  public virtual string Text3 {
    get;
    set;
  }

  [Display(Order = 2, GroupName = Global.GroupNames.Contact)]
  public virtual string Text4 {
    get;
    set;
  }
}

Note If you want to change a setting in a child block type, while still wanting to have some other settings from the base class, you have to copy those settings to the child block type class because the settings in the child block type override the settings in the base class.

Override auto-generated name for inline-creating blocks

Because the Name property is hidden by default, blocks created from an inline edit dialog (inline create) get an automatically generated name. The name is generated using ILocalAssetNameGenerator, and the default format is PageName BlockType AutoIncrementId.

To override the default auto-generated name format, you just need to implement ILocalAssetNameGenerator.
