XForms

17 min

📘 Note This content applies to Optimizely Content Management System (CMS) versions 10 and 11.

XForms are deprecated in CMS 12. Use Optimizely FormsOptimizely Forms instead. While existing solutions will continue to work, you should not build new solutions on this API. It will be phased out in the future.

XForms contains logic to store and present forms and data posted from forms. Together with the forms editor in the CMS edit view, it lets editors create and modify forms and view form data. The XForms architecture enables customization, letting developers adapt the XForms functionality.

Basic concept

XForms forms management structure

EPiServer.XForms namespace

EPiServer.XForms.WebControls namespace

Sending form data

Modifying forms and data

Working with XForms in MVC

Basic concept

Editors use the Forms Editor to create forms in edit view. When saved, the form's content is saved as XHTML and XForms markup.

When you present the form, it loads as web controls and renders it as HTML for the client, so there is no need to install additional software to support XForms for the client. When you take this approach, Optimizely CMS does not support the client-side functionality that may be available when you use an XForms browser plug-in.

Folders for forms

Form folders let you organize a group of forms in a folder structure, which can be useful if the site contains many forms. You also can set a default folder for forms for the entire website or parts of the website, making it easier for editors to manage forms by adding a DefaultFormFolder dynamic property and then setting the property value to the folder of your choice for the part(s) of the website you want to affect.

When you create a form page and select a form, the default folder is the starting point for the selection. When you create forms, you should use the default folder. The sample site and language files support this property but do not include it.

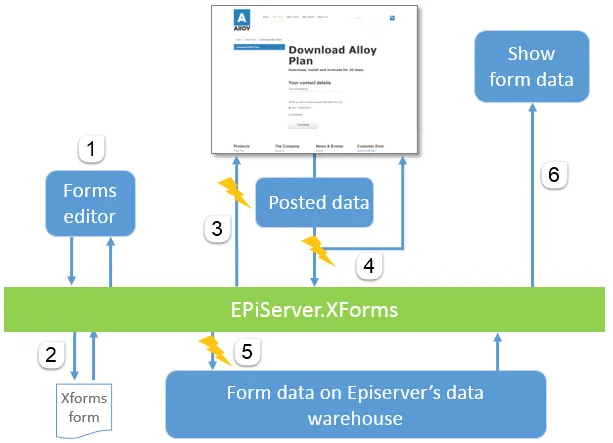

XForms forms management structure


You create a form in the Form Editor in CMS.

EPiServer.XForms converts the form to XHTML and XForms. Repeat Steps 1 and 2 until the form is how you want it.

The form is sent to the client as HTML through EPiServer.XForms. You can alter the form before presenting it to the client by attaching it to events.

Data is posted and validated. If the input is not validated, it sends error messages to the client. (You also can have additional validation on the client before sending the form to the server by setting the EnableClientScript property to true on the XFormControl web control.)

Form data is passed into the Optimizely CMS data warehouse through [EPiServer. XForms] (). You can send the posted data by email or to a custom URL.

If you save the data to the database, you can load and show the posted data on the website.

EPiServer.XForms namespace

XForm class

The XForm class represents the content and the structure of the form. It saves the content of the form as XML. The XML contains the instance node, which contains the data for the form, such as field validation and default values for fields. It also stores information about the structure of the form; this is stored as XHTML with controls from the XForms namespace. This class creates a default XFormData object from its instance node.

The following code shows an example of an XForm's content. When you export a form with the CMS forms editor, the form content is represented in this format.

<root xmlns:xforms=a href="http://www.w3.org/2002/xforms">http://www.w3.org/2002/xforms</a>
          xmlns:xsi=<a href="http://www.w3.org/2001/XMLSchema-instance">http://www.w3.org/2001/XMLSchema-instance</a>>
      <model>
        <instance>
          </Author />
        </instance>
      </model>
      <table id="id_matrix" border="0">
        <tr>
          <td valign="top" width="100" height="10">
            <span id="id_fields1">Author</span></td>
          <td valign="top" width="200" height="10">
            <xforms:input ref="Author" value="" id="id_fields2" size="40" /></td>
        </tr>
      </table>
    </root>

📘 Note Even though this example shows a form that is structured using HTML tables, there are no limitations for the structure of the form to use other elements, such as the <div> element. In CMS, the built-in form editor creates a form using HTML tables.

XFormData class

The XFormData class contains information on the content of a posted form. Normally, when you post a form, you create an XFormData class instance, but you can also define an old post when loading a form to re-edit data. The XFormData class represents existing data when loading form data for a form.

DataTypes class

The DataTypes class contains information about the data types for form fields in a public Types property is a hash table containing keys and values, where keys are the unique keys for the data type, and the value is a regular expression.

When you post form data, it validates the input against the regular expression for the data type of the input control. If you do not specify a data type for the control, it validates the data against the public InvalidDefaultInputRegex string property. A default validation prevents malicious data from being posted from a form.

EPiServer.XForms.WebControls namespace

XFormControl class

XFormControl is a web control that displays an XForms form and verifies the input. The class exposes a public method, SubmitForm, to be able to submit form data. The form itself does not trigger the actual posting; it is handled by any existing submit web controls in the form, which is also why you can have several buttons on the same form that may trigger different actions. Of course, you can also call this method from the code.

What happens when the form is loaded?

The BeforeLoadingForm event is triggered. You can alter the XForm definition here by changing the FormDefinition property of the LoadFormEventArgs that is sent to the event handler. (For instance, you could replace the table structure with a div structure by applying regular expressions to the form content).

The XML from the FormDefinition.Document property is parsed by Page.ParseControl, which adds the parsed controls as child controls. These would be Literal controls for the HTML and form web controls derived from XFormControlBase.

For fields that have validation, validation control(s) are added and connected to the corresponding web control.

ControlsCreated is a triggered public event. At this time, you can alter the form's appearance and function.

The rendering of the form takes place as XHTML.

What happens when data is submitted?

A submit control triggers the SubmitForm event. If defined on the submit control, the submit sets values for email and custom URL to the XFormControl containing the forms data property. The SubmitForm method is called with the channel options set on the submit control. See Sending Form Data for information about available channels.

{/**/}

Validation ensures you follow the rules about anonymous users and multiple postings from the same user. If there are validation errors against these rules, StaticValidators are added to the Page.Validators collection to ensure that validation errors occur. A StaticValidator is a validator that gives a validation error.

BeforeReadingPostedData is a triggered public event and Page.Validate() is called for the current validation group. If the CancelSubmit property is set to true, it add a StaticValidator for strings in the ErrorMessages array. Any validation errors to the XForm controls also result in validation errors and cancel the form posting with a list of validation errors.

BeforeSubmitPostedData is a triggered public event, and any event handlers that sets CancelSubmit to true cancel the form posting.

Xforms sends the form data to the specified channel. If the user is anonymous, it sets a cookie to indicate that it posted the form.

AfterSubmitPostedData is a triggered public event.

XForms web controls

The following table shows the controls and their corresponding HTML tags used while rendering themselves:

Web Control	HTML
Input	<input />
Select	<input type=”checkbox” />
Select1, with Rendertype.Full	<input type=”radio” />
Select1, with Rendertype.Minimal	<select></select>
Submit	<input type=”submit” />
TextArea	<textarea></textarea>
Secret	Not implemented

Send form data

You can send an XFormData object to different channels. A channel might be storage in the database, an email address or a URL. The ChannelOptions property specifies one or several channels where it sends the data.

Channel Name	Description
Database	The entire XFormData object is serialized and saved to the tblItem table in the database.
Email	The content of the form data is transformed using a predefined XSLT.
CustomUrl	The values for the form are uploaded to a URL using the System.Net.WebClient class.

Modify forms and data

Work with form postings

In CMS, the XForm class has several methods for accessing form data. GetPostedData lists form data objects that specify certain criteria, such as posted date, form, and page ID. In CMS, there are overloads of this method that supports paging also. GetPostedDataCount gets the number of users that have posted data to a form, and GetPostedDataStatistics calculates statistics for a form directly in the database.

Retrieve and modify previously posted data

You can re-edit data that is posted to the database (or another custom location if you can load and save the XFormData object). To do this, create an XFormControl object and set its Data property to the XFormData object you want to load. It loads the form with the values from the posted data. If it posts the data to the database, it replaces the old data.

You also could load an XFormData object and modify the object programmatically. By using the Send method, you can store the modified content again.

Edit the appearance of a form

There are two main ways to edit the appearance of a form.

Edit the content of the form in the BeforeLoadingFormsEvent. If you do this, it might affect the behavior of the built-in form editor. The LoadFormsEventArgs class has an EditMode property that defines whether the form is loaded in edit view, which lets you only change the form to the end user, thus not affecting the Optimizely CMS edit mode.

Attach to the ControlsCreated event for the XFormControl object. The content of the form is parsed and added to the Controls collection. Xforms parses the HTML content as Literal controls, and the XForm controls as the different controls in the EPiServer.XForms.WebControls namespace. There should not be any problems modifying the HTML content.

If you want to change the appearance of the XForm web controls, add or modify the attribute collection for the control. By using CSS and setting the class attribute for the control, you could do a lot for the appearance of the form control. In Optimizely CMS the ExtractXFormControls method gets an ArrayList containing the input elements for the form.

Send customized emails

When you use the email option for sending XFormData, the content of the form data is transformed using an XSLT schema. Unfortunately, you cannot specify a custom XSLT schema to transform the form data to an email. You can still implement your email handling by adding custom logic to the BeforeSubmitPostedData event on the XFormControl web control. Before exiting your custom logic, remove the email option from the e.FormData.ChannelOptions property to ensure that the regular email channel is not triggered.

If you set e.FormData.ChannelOptions to ChannelOptions.None, you lose additional channels to which the form data is sent, such as the Database Channel.

Work with XForms in MVC

When you use XForms with MVC, required functionality is automatically injected into the controller when using the ActionControllerBase base class (which, for example, PageController<T> inherits from). Use the normal HTML-helper Html.PropertyFor in the view to render the XForm.

Static events on the XFormActionHelper class exist for BeforeSubmitPostedData and AfterSubmitPostedData to listen and act on posted data through MVC for the whole site.

You can also handle the posting using a method on the controller. To take more control over the posting, add an XFormParameters instance to the following:

PropertyFor: @Html.PropertyFor(x => x.CurrentContent.MyForm, new {
  XFormParameters = new EPiServer.XForms.Util.XFormParameters() {
    PostAction = "Posted", SuccessAction = "Success", FailedAction = "Failed"
  }
})

In the XFormParameters class, you can specify the methods to use when you post the XForm, the methods to use when the user gets validation errors, and when the XForm gets posted. The controller may look something like the following code when you take care of the post action:

public class XFormPageController: PageController < XFormPage > {
  private XFormPageUnknownActionHandler _xformHandler;

  public XFormPageController(XFormPageUnknownActionHandler xformHandler) {
    _xformHandler = xformHandler;
  }

  public ActionResult Index(PageData currentPage) {
    return View(currentPage);
  }

  #region Success and failed actions

  [AcceptVerbs(HttpVerbs.Post)]
  public ActionResult Success(PageData currentPage, XFormPostedData xFormPostedData) {
    return View("Success", currentPage);
  }

  [AcceptVerbs(HttpVerbs.Post)]
  public ActionResult Failed(PageData currentPage, XFormPostedData xFormPostedData) {
    return View("Failed", currentPage);
  }

  #endregion

  [AcceptVerbs(HttpVerbs.Post)]
  public ActionResult DoSubmit(XFormPostedData xFormpostedData) {
    return _xformHandler.HandleAction(this);
  }
}

Validation

Xforms performs validation when you use the XFormHandler on the server side. To enable client validation, add the HTML-helper EnableClientValidation in your view.

Render

To render an XForm property on a page, use the Property and RenderPropertyXForm HTML helper methods in the view. The Property method uses the default behavior, while the RenderPropertyXForm takes the name of the property and an XFormParameters class as parameters. Optionally use the XFormParameters parameter to override the default settings.

If you do not set the SuccessAction and FailedAction properties on the XFormParameters class, the system uses default views for successful and failed posts. If you set SuccessAction to Success and FailedAction to Failed, the system calls the Success or Failed action in the controller, depending on whether a validation error occurred when posting the form. To make it work, you must create the Success and Failed methods in the controller.

<%@ Control Language="C#" Inherits="System.Web.Mvc.ViewUserControl" %>
    <%@ Import Namespace="EPiServer.XForms.Util" %>

    <section id="form">
        <%--<% Html.EnableClientValidation(); %>--%>
        <%: Html.ValidationSummary() %>
        <% Html.RenderPropertyXForm("XForm", new XFormParameters() { SuccessAction = "Success", FailedAction = "Failed" }); %>
        <%--<%: Html.Property("XForm") %>  --%>
    </section>
