Example: Create visitor group criteria
(Thanks to Ted & Gustaf for this example.)
One usage scenario could be to check for a cookie that says that the visitor has previously completed a purchase on the website and is a returning customer.
Create the settings and criterion classes
Visitor group criteria require a settings class and a criterion class.
- The settings class is used to persist any settings available to editors when creating visitor groups.
- The criterion class contains the logic to determine whether or not a visitor belongs to the visitor group.
You should create the two classes in a suitable folder structure:

Implement the settings class
The only setting required for this visitor group criterion is the cookie name you should look for.
- First, make the CookieExistsCriterionSettings class inherits the CriterionModelBase class:
public class CookieExistsCriterionSettings : CriterionModelBase- Add a public property to let editors specify the cookie name:
[Required]
public string CookieName {
get;
set;
}- If you need custom validation logic when you save a criterion, you can make your settings class implement the IValidateCriterionModel interface (this is optional). By implementing that interface’s Validate method, you can customize how you validate settings before saving a criterion for a visitor group. The abstract CriterionModelBase class requires you to implement the Copy() method. Because you are not using complex reference types, you can implement it by returning a shallow copy as shown (see Create custom visitor group criteriaCreate custom visitor group criteria):
public override ICriterionModel Copy() {
return ShallowCopy();
}The following code shows the complete CookieExistsCriterionSettings class:
public class CookieExistsCriterionSettings: CriterionModelBase {
[Required]
public string CookieName {
get;
set;
}
public override ICriterionModel Copy() {
return ShallowCopy();
}
}Implement the criterion class
- Make the CookieExistsCriterionclass inherit the abstract CriterionBaseclass with the settings class as the type parameter:
public class CookieExistsCriterion : CriterionBase<CookieExistsCriterionSettings>- Add a VisitorGroupCriterion attribute to set the category, name, and description of your criterion (for more available VisitorGroupCriterion properties, see Create custom visitor group criteriaCreate custom visitor group criteria:
[VisitorGroupCriterion(
Category = "Technical",
DisplayName = "Cookie Exists",
Description = "Checks if a specific cookie exists")]- The abstract CriterionBase class requires you to implement an IsMatch() method, which determines whether the current user matches this visitor group criterion. You should check if a specific cookie exists based on the criterion settings:
public override bool IsMatch(IPrincipal principal, HttpContextBase httpContext) {
return httpContext.Request.Cookies[Model.CookieName] != null;
}The criterion class displays as follows:
[VisitorGroupCriterion(
Category = "Technical",
DisplayName = "Cookie Exists",
Description = "Checks if a specific cookie exists")]
public class CookieExistsCriterion: CriterionBase<CookieExistsCriterionSettings> {
public override bool IsMatch(IPrincipal principal, HttpContextBase httpContext) {
return httpContext.Request.Cookies[Model.CookieName] != null;
}
}📘 Note You access the criterion settings instance through the Modelproperty.
Test the criterion
Create a visitor group using the new cookie criterion to test the criterion.

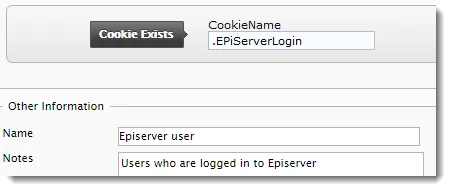

- Set the cookie name to .EPiServerLogin, the name of the cookie created when a user logs in:

If you are on CMS version 10 or 11, it will look like this:

- Select some content in the editor that you should display only to logged-in Episerver users.

- Click Personalized Content and select the Episerver User visitor group.

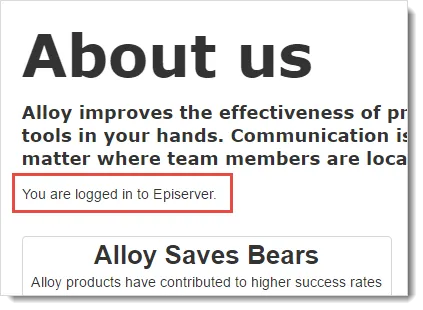

This content is now only displayed to users logged into Episerver:

After publishing the page, you see this:

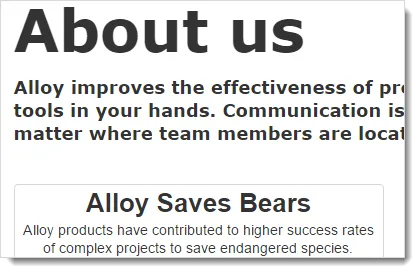

However, you no longer see the personalized content if you log out.
