Extend the CMS navigation

21 min

📘 CMS version 11.21 and higher. The following section shows how to extend the navigation for Optimizely Content Management System (CMS) version 11.21 and higher.

You can extend the navigation to let editors access CMS and other products from the global menu.

The [MenuItem] attribute adds an interface to the menu. See Add and configure menu itemsAdd and configure menu items.

You can also configure and implement a custom menu provider; see Use menu providersUse menu providers.

Attributes and menu providers must reside in an assembly configured as a shell modulea shell module.

CMS introduced a global navigation menu in version 11.21 of CMS UI that differs slightly from how it worked before. If you upgrade the global navigation menu, see Upgrade navigationUpgrade navigation.

📘 Optimizely Content Management System (CMS) version 10 to 11.20. The following sections show how to extend the navigation for Optimizely Content Management System (CMS) version 10 to 11.20.

You can extend the navigation to let editors access CMS and other products from the global menu.

The [MenuItem] attribute adds an interface to the menu.

You can also configure and implement a custom menu provider.

Attributes and menu providers must reside in an assembly configured as a shell module.

[MenuItem] attribute

Use MenuItem on ASP.NET MVC controllers. MenuItem adds links to the top menu (and requires the module to be registered; see Configure Shell modulesConfigure Shell modules. The required menuPath parameter is a logical path of the menu element in the menu. Use the Url parameter to add a linked URL to the interface.

The following example adds a menu item to the top menu bar with the text Start, and the ASP.NET MVC route table infers the URL:

public class DashboardController: Controller {
  [MenuItem("/global/dashboard", Text = "Start")]
  public ActionResult Index() {}
}

When you add menu items, implement the page to include CMS's shell styling and render the menu so you can navigate back.

The key functions to render a menu are:

@Html.Raw(ClientResources.RenderResources("Navigation"))

@Html.Raw(Html.ShellInitializationScript())

@Html.Raw(Html.GlobalMenu())

In the following code example, the GlobalMenu line renders the HTML markup needed for the menu. Scripts and styles come from the RenderResources in the <head> tag.

@using EPiServer.Framework.Web.Resources
@using EPiServer.Shell.Navigation

<!DOCTYPE html>
<html>
  <head>
    <title>@ViewBag.Title</title>

    <meta http-equiv="X-UA-Compatible" content="IE=Edge" />

    <!-- Shell -->
    @Html.Raw(ClientResources.RenderResources("ShellCore"))
    @Html.Raw(ClientResources.RenderResources("ShellWidgets"))

    <!-- LightTheme -->
    @Html.Raw(ClientResources.RenderResources( "ShellCoreLightTheme"))

    <!-- Navigation -->
    @Html.Raw(ClientResources.RenderResources("Navigation"))

    <!-- Dojo Dashboard -->
    @Html.Raw(ClientResources.RenderResources( "DojoDashboardCompatibility", new[] { ClientResourceType.Style }))

  </head>
  <body>
    @Html.Raw(Html.ShellInitializationScript())
    @Html.Raw(Html.GlobalMenu())
    <div>
      @RenderBody()
    </div>
  </body>
</html>

You can localize menu items defined with attributes with a static property of a resource class. ResourceType references a class with a static property. TextResourceKey is the name of the static property that returns the localized text.

Example:

[MenuItem("/global/dashboard", TextResourceKey = "Start", ResourceType = typeof(MenuResources))]

The menu path organizes menu items in a tree structure. Menu items in the top menu are in the /global bucket. The next segment is the name of the menu section, for example, /global/cms. The last segment represents the actual user interface, for example, /global/cms/edit.

Some menu items have a URL that creates a link in the menu. The page at the end of this URL should render a menu where the corresponding menu path is selected.

Permissions with the MenuItem attribute

You can restrict who sees a certain menu item by using the [Authorize] attribute. For example:

public class DashboardController: Controller {
  [MenuItem("/global/dashboard")]
  [Authorize(Roles = "NoOne")]
  public ActionResult Index() {}
}

The building blocks of the navigation are menu providers and menu items. A menu provider enumerates menu items organized in a tree according to their menu path. CMS contains a menu provider that looks at [MenuItem] attributes and provides them as menu items.

IMenuProvider

You can extend the standard menu by implementing a menu provider as an attribute alternative. The menu provider returns menu items that are correctly localized. To use a menu provider, implement the IMenuProvider interface, decorate it with the [MenuProvider] attribute, and make it part of a registered shell module.

You can add menu sections and sub-menu items such as menu sections, drop-downs, URLs, and popup menu items. Each menu item defines a path, determining its location in the menu hierarchy. For example, a URL menu item with path /global/cms/myMenu is placed in the CMS section of the menu (which has the path /global/cms).

Types:

URL Menu Item are links; a click navigates to a specified URL.

Popup Menu Item are links opened in a window (JavaScript window.open).

Section Menu Item are top menu sections that open an underlying menu.

Drop-Down Menu Item are drop-down-style menu items designed for the utility menu area (right).

Example:

/// <summary>
/// Provides menu items for the CMS product.
/// </summary>
[MenuProvider]
public class CmsMenuProvider: IMenuProvider {
  /// <summary>
  /// Provides the CMS menu section and the CMS settings section.
  /// </summary>
  /// <returns>
  /// A list of <see cref="MenuItem"/>s that the provider exposes.
  /// </returns>
  public IEnumerable < MenuItem > GetMenuItems() {
    // Create the top menu section
    var section = new SectionMenuItem("CMS", // Title
      "/global/cms"); // Logical path

    // Visible to CMS editors
    section.IsAvailable = (request) =>
      PrincipalInfo.HasEditAccess;

    // Create the edit menu item below the top section
    var cmsEdit = new UrlMenuItem("Edit", // Title
      "/global/cms/edit", // Logical path
      "/path/to/edit/default.aspx"); // URL

    // Visible to CMS editors
    cmsEdit.IsAvailable = (request) =>
      PrincipalInfo.HasEditAccess;

    return new MenuItem[] {
      section,
      cmsEdit
    };
  }
}

A menu provider returns localized menu items.

The menu provider can defer permission filtering to the menu item by setting the IsAvailable delegate to a method that checks access for the user provided with the RequestContext parameter.

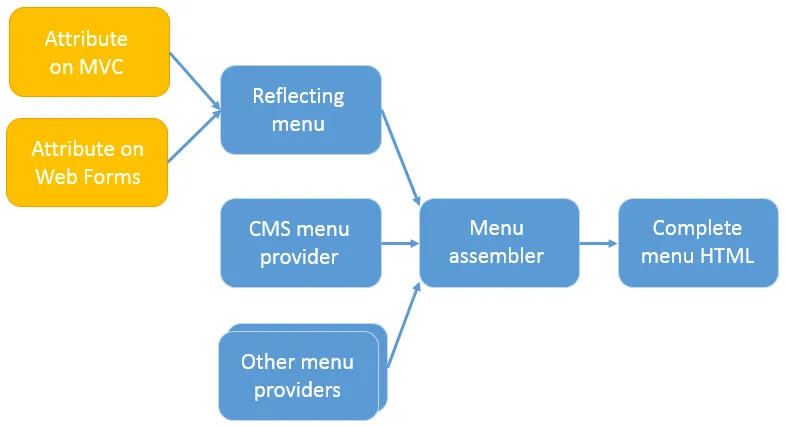

Menu items flow from the providers into a hierarchical model rendered into HTML.


To extend the menu, you can, for example, configure web.config as follows:

<episerver.shell>
  <navigation>
    <add text="Intranet" menuPath="/global/intra"
         url="http://intra" sortIndex="100" />
    <add text="My section" menuPath="/global/my"
         menuItemType="Section" sortIndex="300" />
    <add text="Edit" menuPath="/global/my/edit"
         url="/my/edit.aspx" sortIndex="100" />
    <add text="Admin" menuPath="/global/my/admin"
         url="/my/admin.aspx" sortIndex="200" />
  </navigation>
</episerver.shell>

Examples


using System.Web.Mvc;
using EPiServer.Shell.Navigation;

namespace Alloy.Business {
  public class EpiServerWorldGlobalMenuItem: Controller {
    [MenuItem(MenuPaths.Global + "/globalLink", SortIndex = SortIndex.First - 10, Text = "Episerver world",
      Url = "https://world.episerver.com/cms/")]
    public ActionResult Index(string viewName) {
      return View();
    }
  }
}


using System.Collections.Generic;
using EPiServer;
using EPiServer.Security;
using EPiServer.Shell.Navigation;

namespace Alloy.Business {
  [MenuProvider]
  public class CmsMenuProvider: IMenuProvider {
    public IEnumerable < MenuItem > GetMenuItems() {
      var menuItems = new List < MenuItem > ();
      menuItems.Add(new UrlMenuItem("Another link to Admin",
        MenuPaths.Global + "/cms" + "/cmsMenuItem",
        UriSupport.ResolveUrlFromUIAsRelativeOrAbsolute("Admin/Default.aspx")) {
        SortIndex = SortIndex.First + 25,
          IsAvailable = (request) => PrincipalInfo.HasAdminAccess
      });

      return menuItems;
    }
  }
}


📘 Note While the example below works, you should not use the main navigation for external links.

using System.Collections.Generic;
using EPiServer.Security;
using EPiServer.Shell.Navigation;

namespace Alloy.Business {
  [MenuProvider]
  public class GlbalSectionMenuProvider: IMenuProvider {
    const string MainMenuPath = MenuPaths.Global + "/customSection";

    public IEnumerable < MenuItem > GetMenuItems() {
      var menuItems = new List < MenuItem > ();

      menuItems.Add(new SectionMenuItem("Episerver Forum", MainMenuPath) {
        SortIndex = SortIndex.Last + 10,
          IsAvailable = (request) => PrincipalInfo.HasEditAccess
      });

      menuItems.Add(new UrlMenuItem("CMS", MainMenuPath + "/item1",
        "https://world.episerver.com/forum/developer-forum/-Episerver-75-CMS/") {
        SortIndex = 1,
      });

      menuItems.Add(new UrlMenuItem("Commerce", MainMenuPath + "/item2",
        "https://world.episerver.com/forum/developer-forum/Episerver-Commerce/") {
        SortIndex = 2,
      });

      menuItems.Add(new UrlMenuItem("Forms", MainMenuPath + "/item3",
        "https://world.episerver.com/forum/developer-forum/episerver-forms/") {
        SortIndex = 3,
      });

      return menuItems;
    }
  }
}


using System.Web.Mvc;
using EPiServer.Shell.Navigation;

namespace Alloy.Business {
  /// <summary>
  ///  Menu item under User Settings menu (menu added using controller action)
  /// </summary>
  /// <returns></returns>
  public class EpiServerWorldMenuItem: Controller {
    [MenuItem(MenuPaths.UserSettings, SortIndex = SortIndex.First - 10, Text = "About Episerver",
      Url = "https://www.episerver.com/about/company/overview/")]
    public ActionResult Index(string viewName) {
      return View();
    }
  }
}


using System.Collections.Generic;
using EPiServer.Shell.Navigation;

namespace Alloy.Business {
  [MenuProvider]
  public class UserSettingsMenuProvider: IMenuProvider {
    public IEnumerable < MenuItem > GetMenuItems() {
      var menuItems = new List < MenuItem > ();
      var item = new UrlMenuItem("Documentation", MenuPaths.User + "/episerver2",
        "https://world.episerver.com/documentation/") {
        SortIndex = SortIndex.Last + 10
      };
      menuItems.Add(item);
      return menuItems;
    }
  }
}


using System.Collections.Generic;
using EPiServer.Shell.Navigation;

namespace Alloy.Business {
  [MenuProvider]
  public class DropdownMenuProvider: IMenuProvider {
    const string DropdownMenuPath = MenuPaths.Global + "/customDropdownMenu";

    public IEnumerable < MenuItem > GetMenuItems() {
      var menuItems = new List < MenuItem > ();

      var userMenu = new DropDownMenuItem("Episerver blogs", DropdownMenuPath) {
        SortIndex = SortIndex.Last - 20,
          Alignment = MenuItemAlignment.Right
      };
      menuItems.Add(userMenu);

      menuItems.Add(new UrlMenuItem("CMS", DropdownMenuPath + "/item1",
        "https://world.episerver.com/blogs/?type=cmsblog&page=1") {
        SortIndex = 1,
      });

      menuItems.Add(new UrlMenuItem("Commerce", DropdownMenuPath + "/item2",
        "https://world.episerver.com/blogs/?type=commerceblog&page=1") {
        SortIndex = 2,
      });

      menuItems.Add(new UrlMenuItem("Find", DropdownMenuPath + "/item3",
        "https://world.episerver.com/blogs/?type=findblog&page=1") {
        SortIndex = 3,
      });

      return menuItems;
    }
  }
}
