Understand your impact analysis

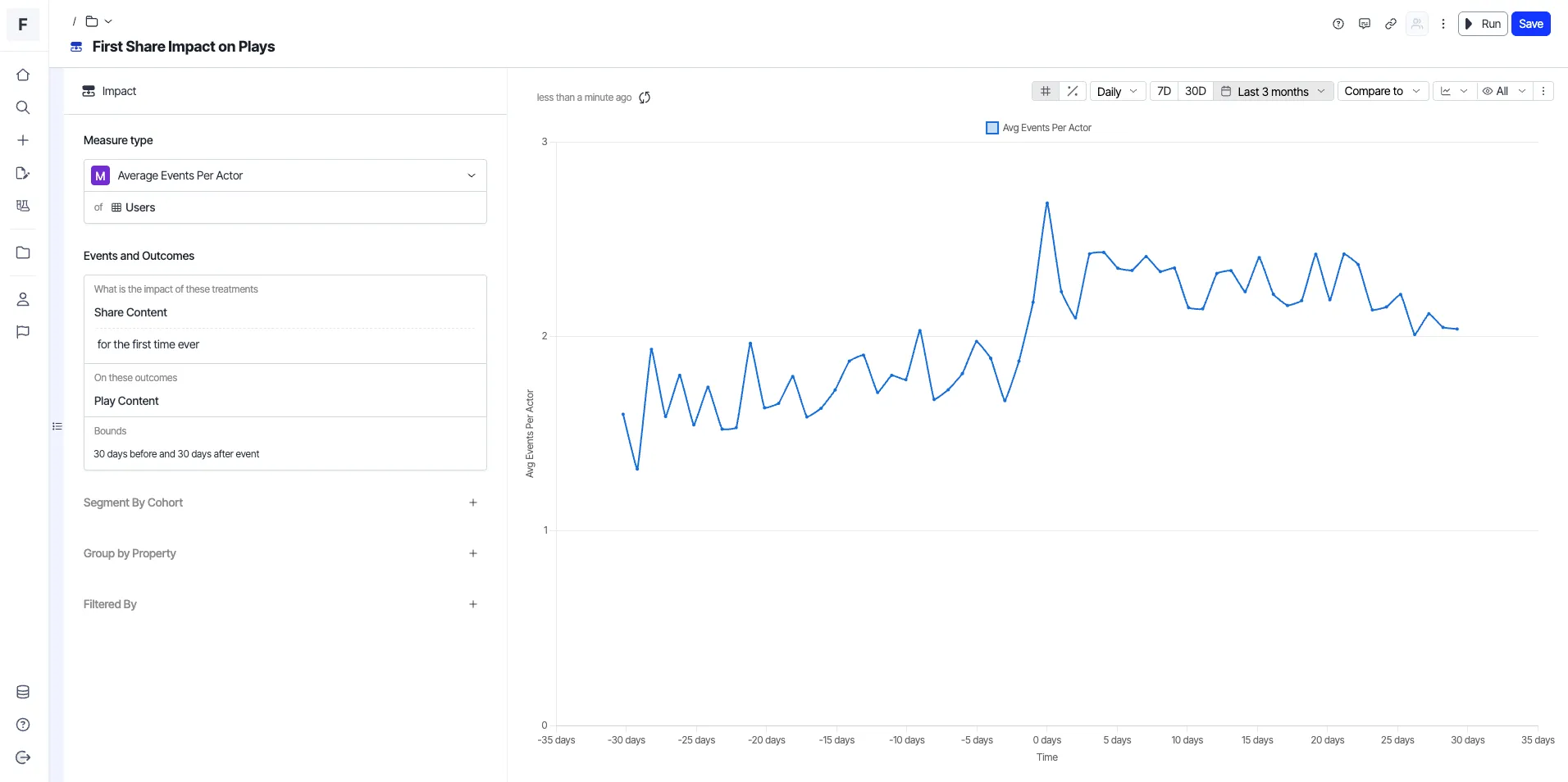

This article will help you understand how the different modules of the Impact analysis chart work and how you should interpret the data it contains.

The impact template has the following six modules with unique configurations in the template:

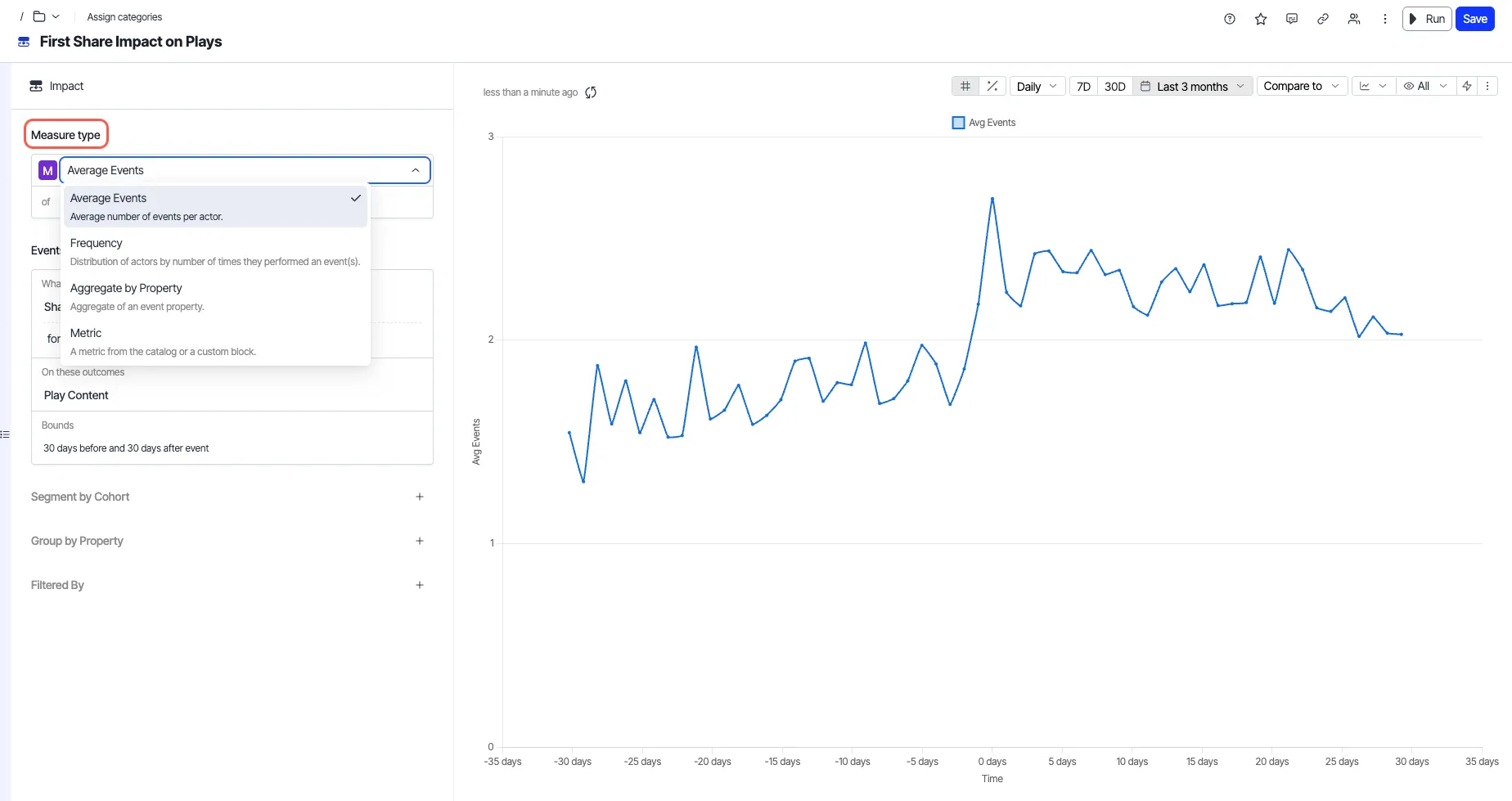

The measures module contains a selector that lets you choose an impact measure to analyze based on the selected event pattern and actor segments.

Running an impact analysis helps you measure the following:

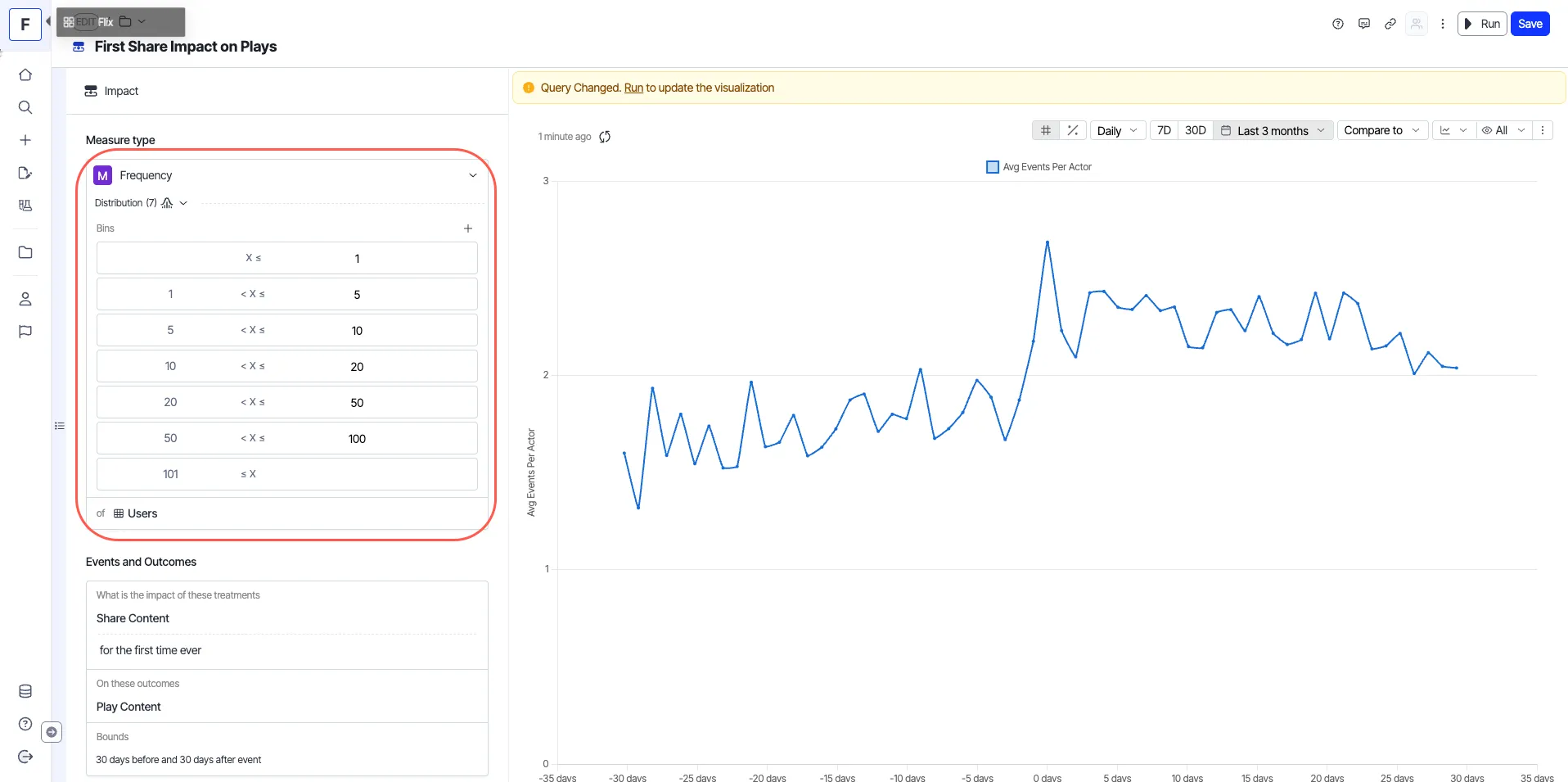

You can create bins and categorize results based on the measure you choose. This option is only available for Frequency and Aggregate over property or metric measures.

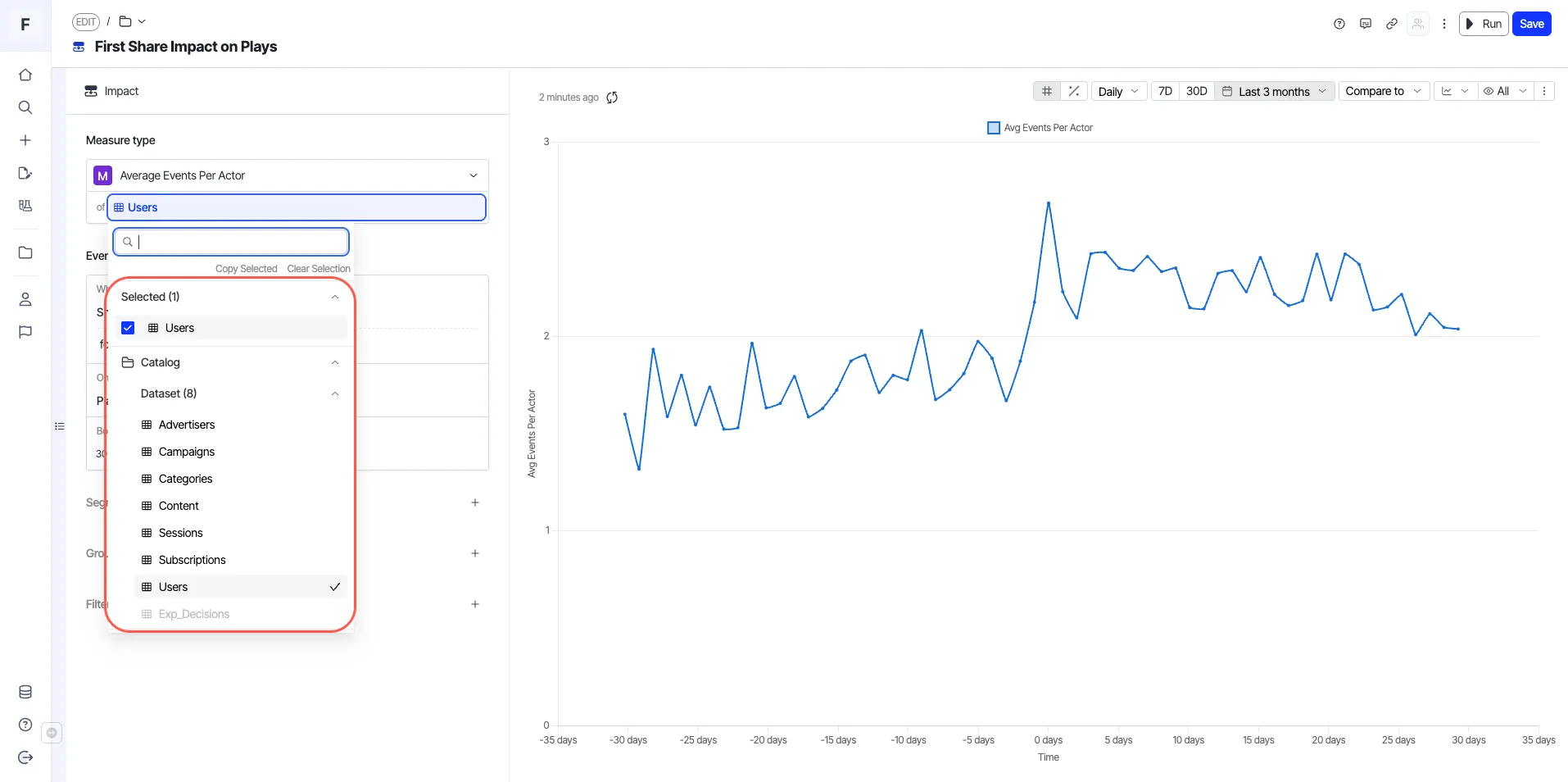

Analyzing data that centers around actors, such as users, accounts, tickets, and so on, is essential for impact analysis. The Of selector lets you select any dataset for actors. You can also use blocks in this section.

Using the events module in the impact template, you can specify the preferred events and criteria for which you want to measure the impact. Analytics calculates impact information based on the events and outcomes defined here.

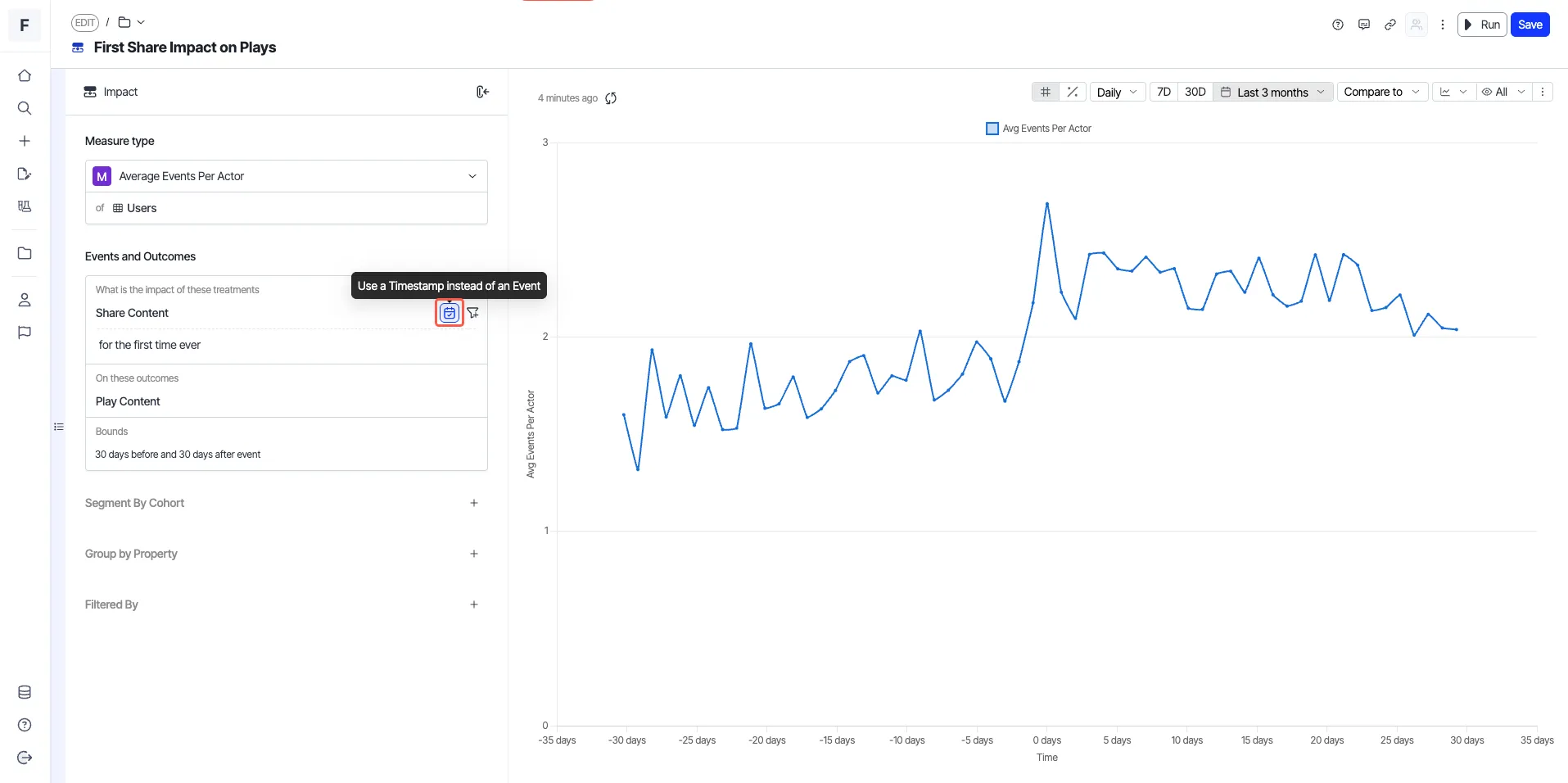

If you want to use a Timestamp instead of an Event, click the timestamp icon in this section.

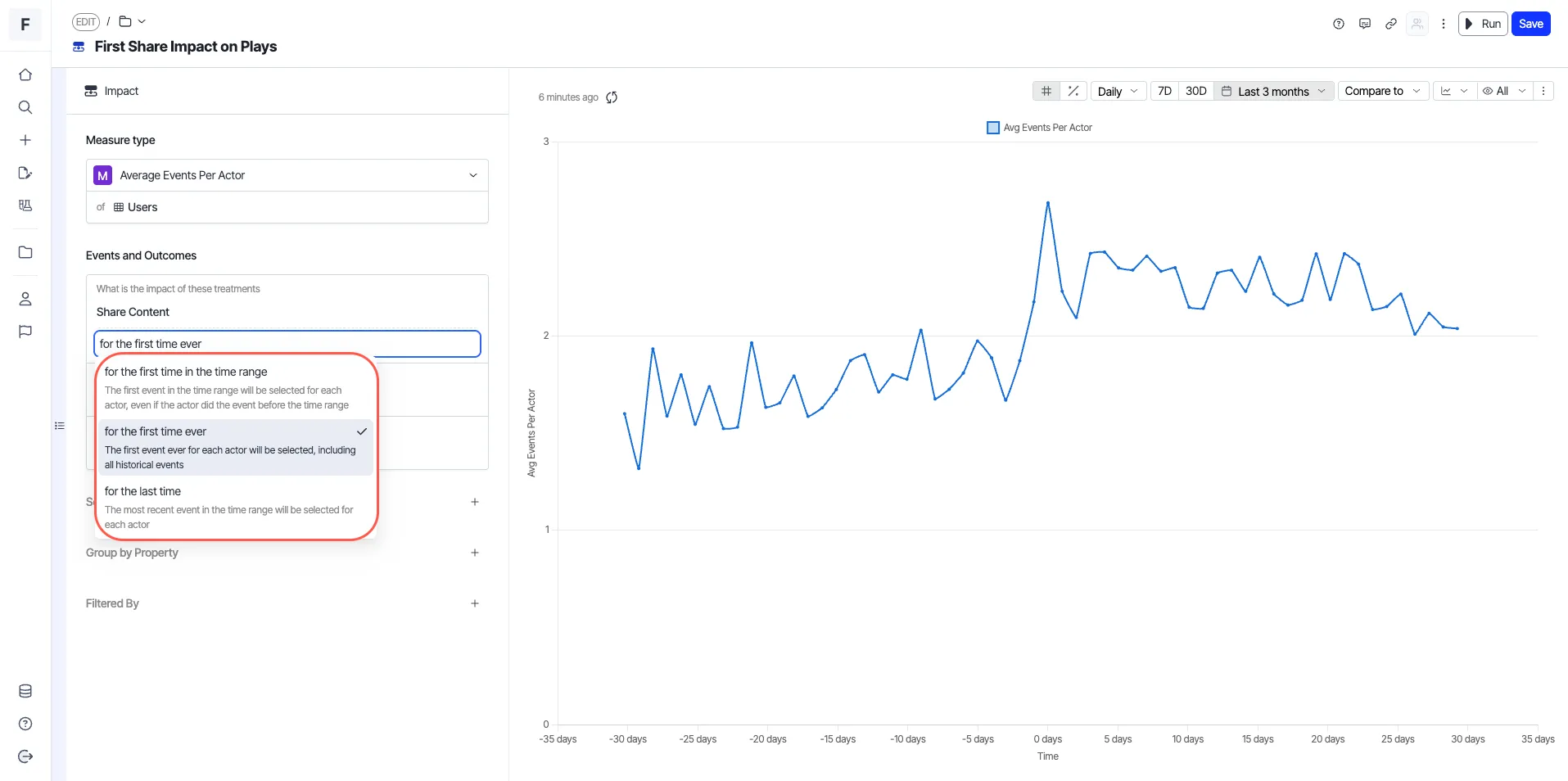

You can also set the Event Occurrence in this section. You can specify whether you want to start the analysis before or after the event's first or last occurrence. You can choose from three options: for the first time in the time range, for the first time ever, or for the last time.

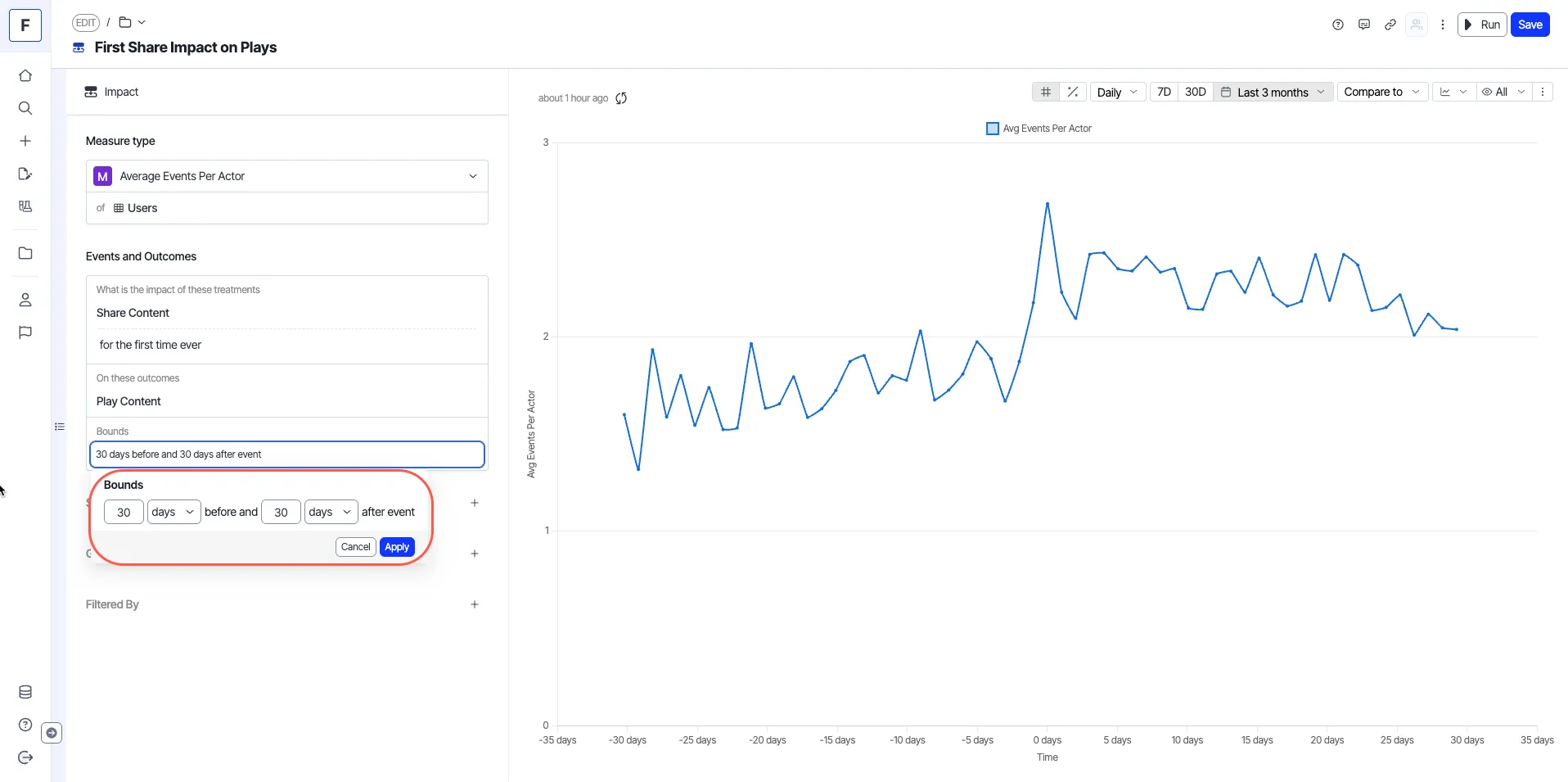

You can define Bounds, which is the time before and after the first occurrence of the outcomes defined in the previous step.

Analytics also lets you choose JSON columns in this module. When you click a JSON column, it expands to display all the available keys for that particular column. You can choose a key and click Apply. When this is done, the selected field's path is used as that column's display name.

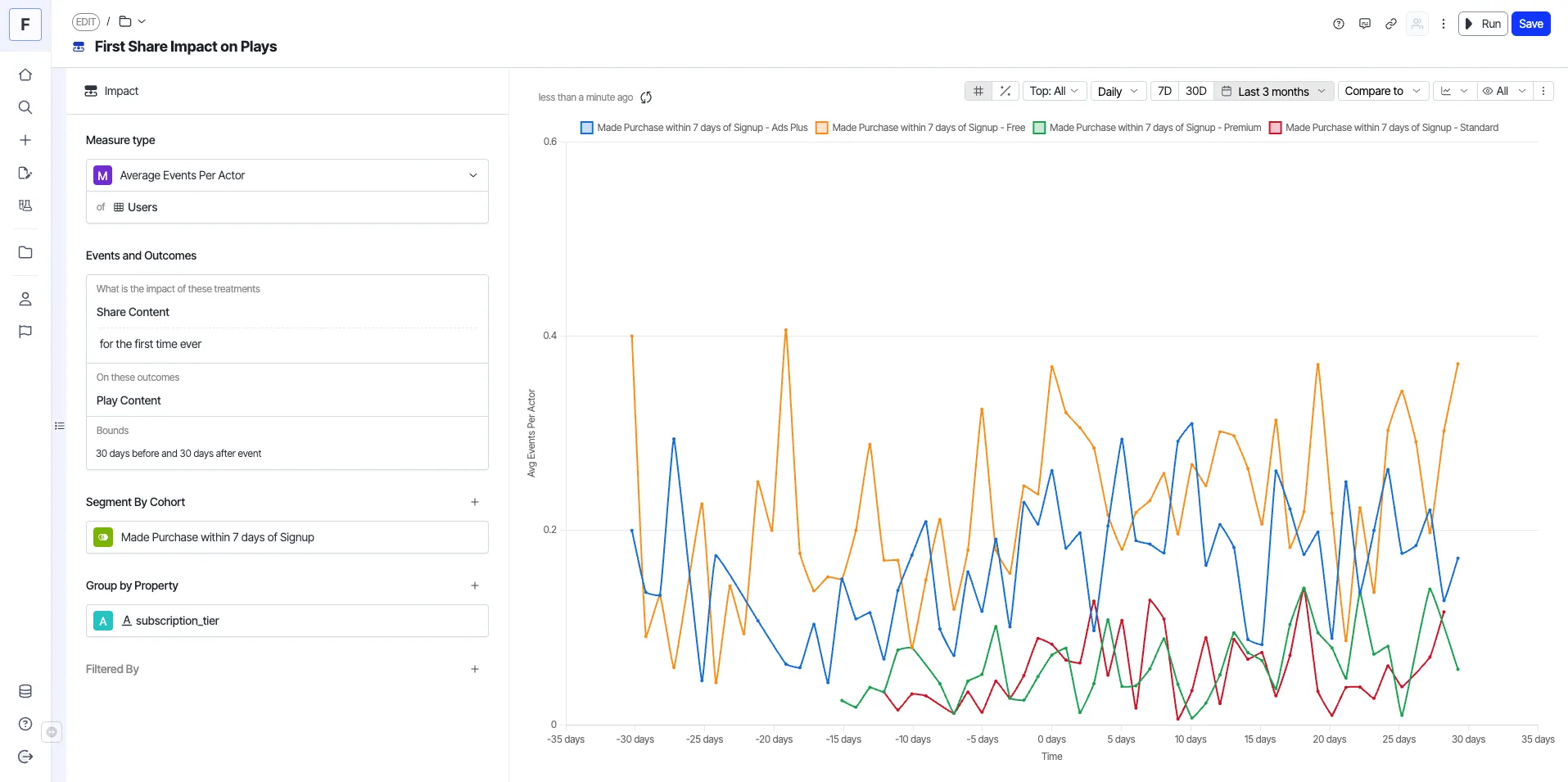

The segmentation module in the impact template lets you choose a cohort of actors, such as users, or one or more attributes to include in the analysis. It has two sub-sections: Performed by and Grouped by, which let you add cohorts and attributes. You can create a cohort by choosing an existing cohort from the drop-down list or by using the + New Cohort option to create a behavioural cohort block in one click.

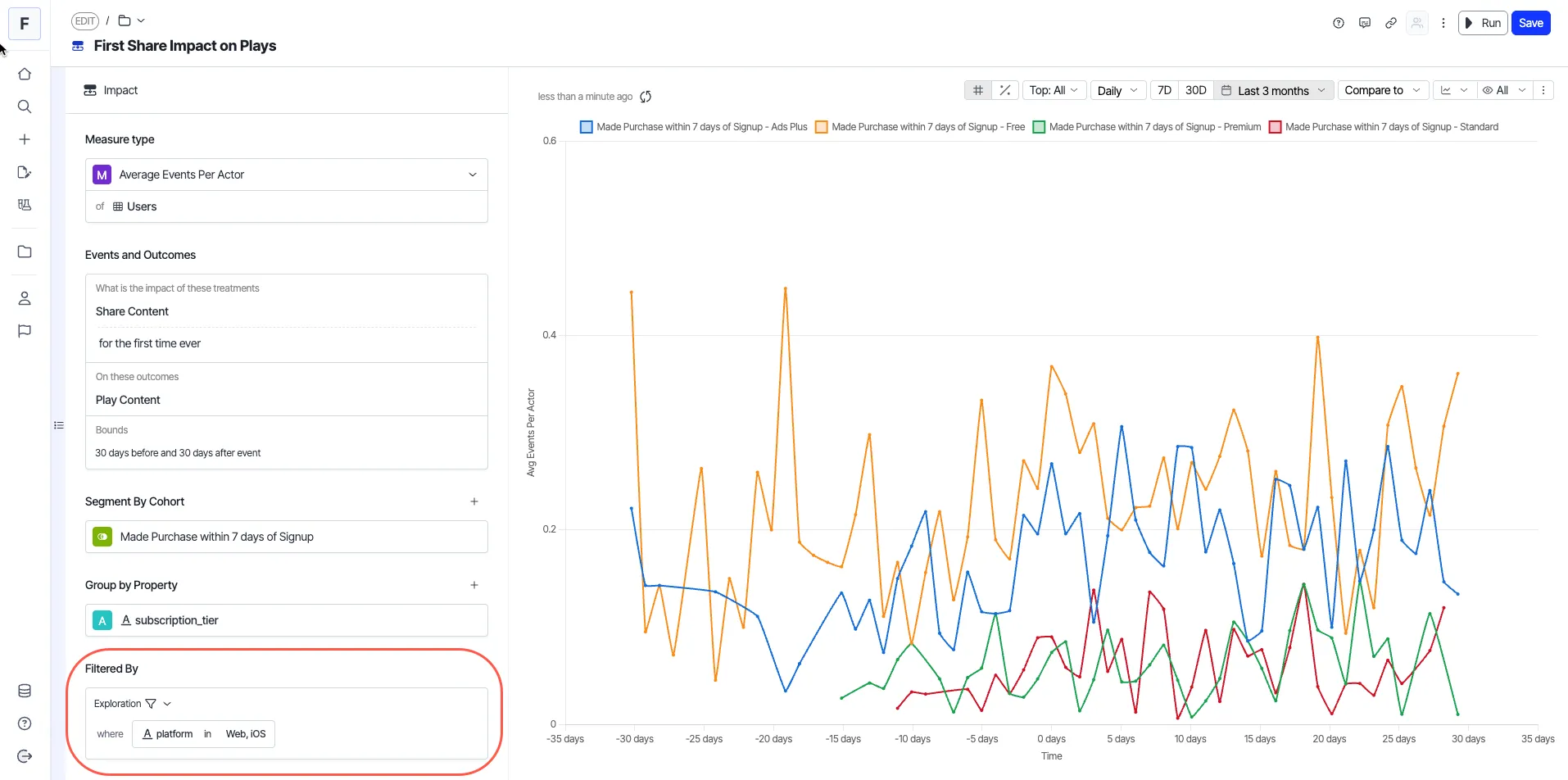

Use filters to narrow down data in a visualization. They make it easier for the user to answer exploratory questions, for example, if you want to see results for a specific region, you can define a region filter and see the narrowed-down data.

Analytics also lets you choose JSON columns in this module. When you click a JSON column, it expands to display all the available keys for that particular column. You can choose a key and click Apply. When this is done, the selected end key is chosen as the display name for that column.

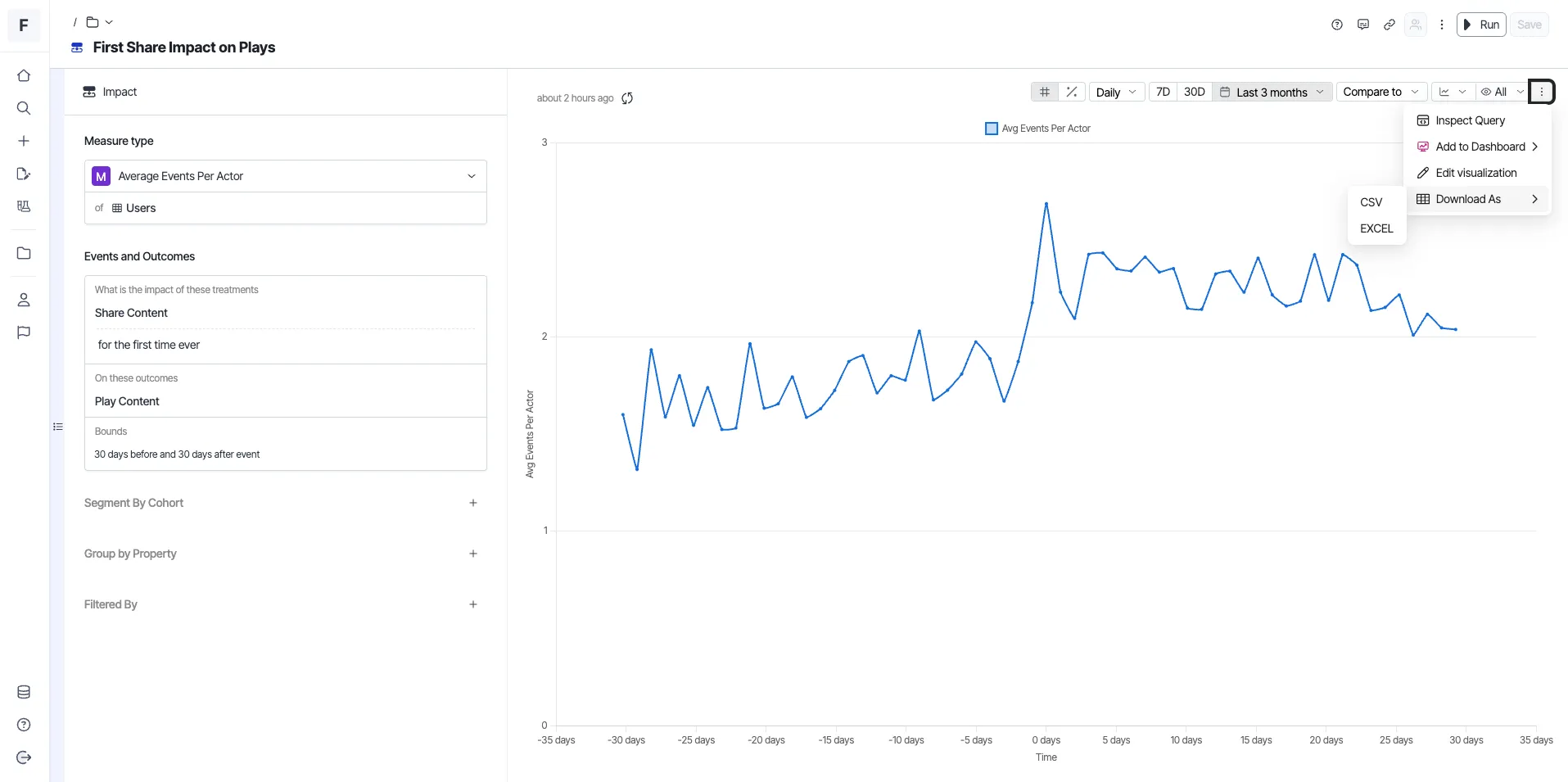

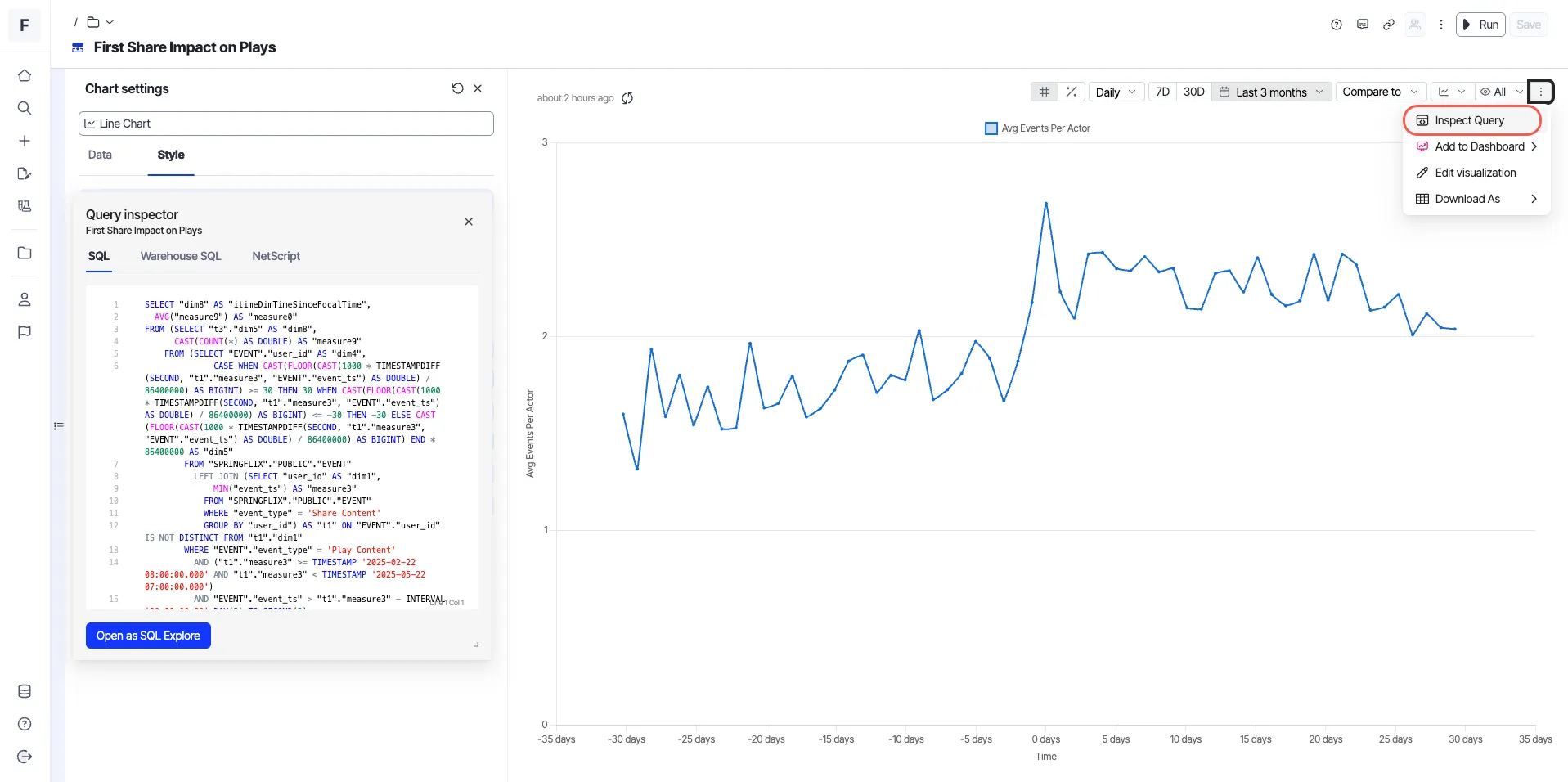

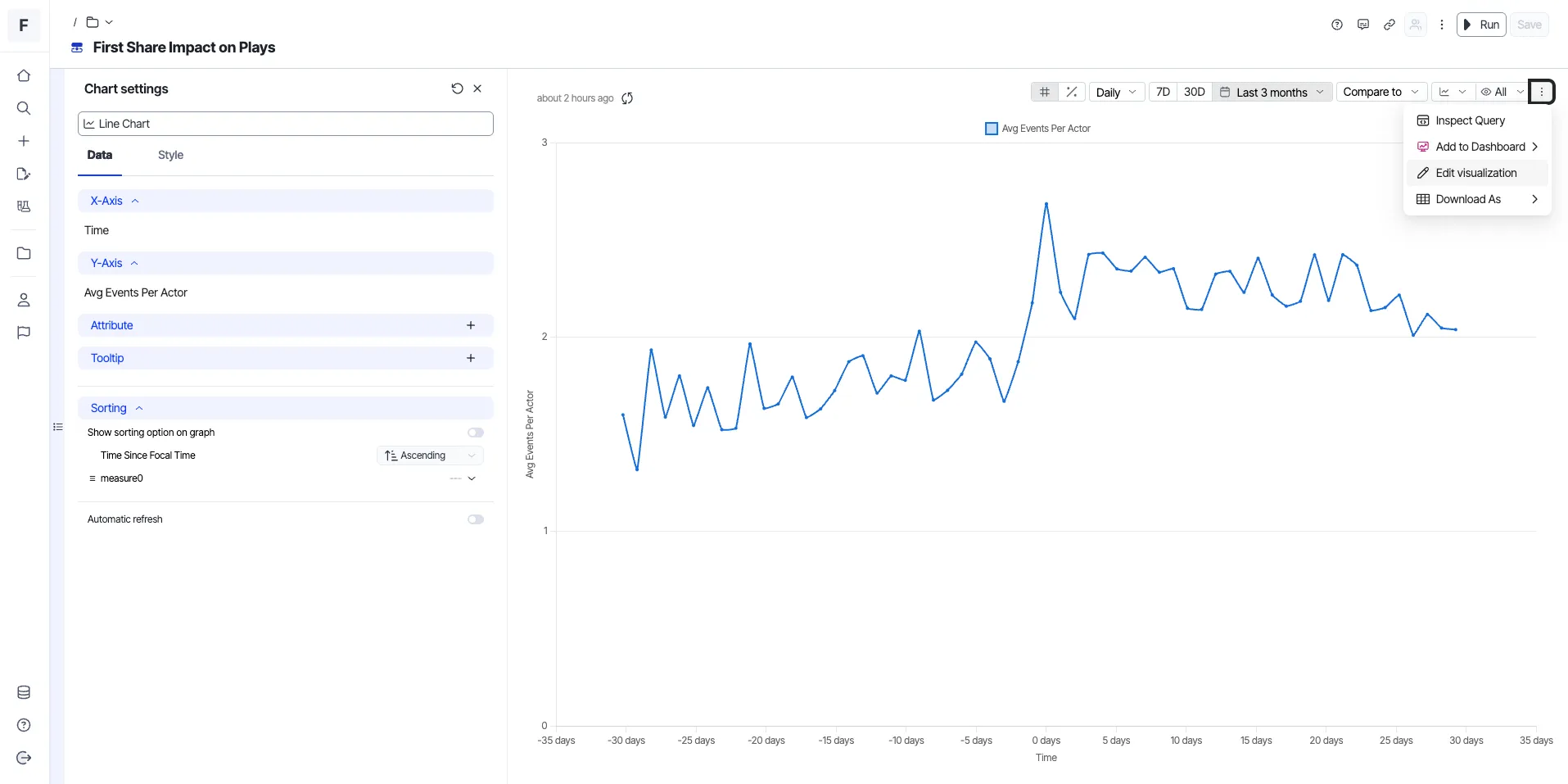

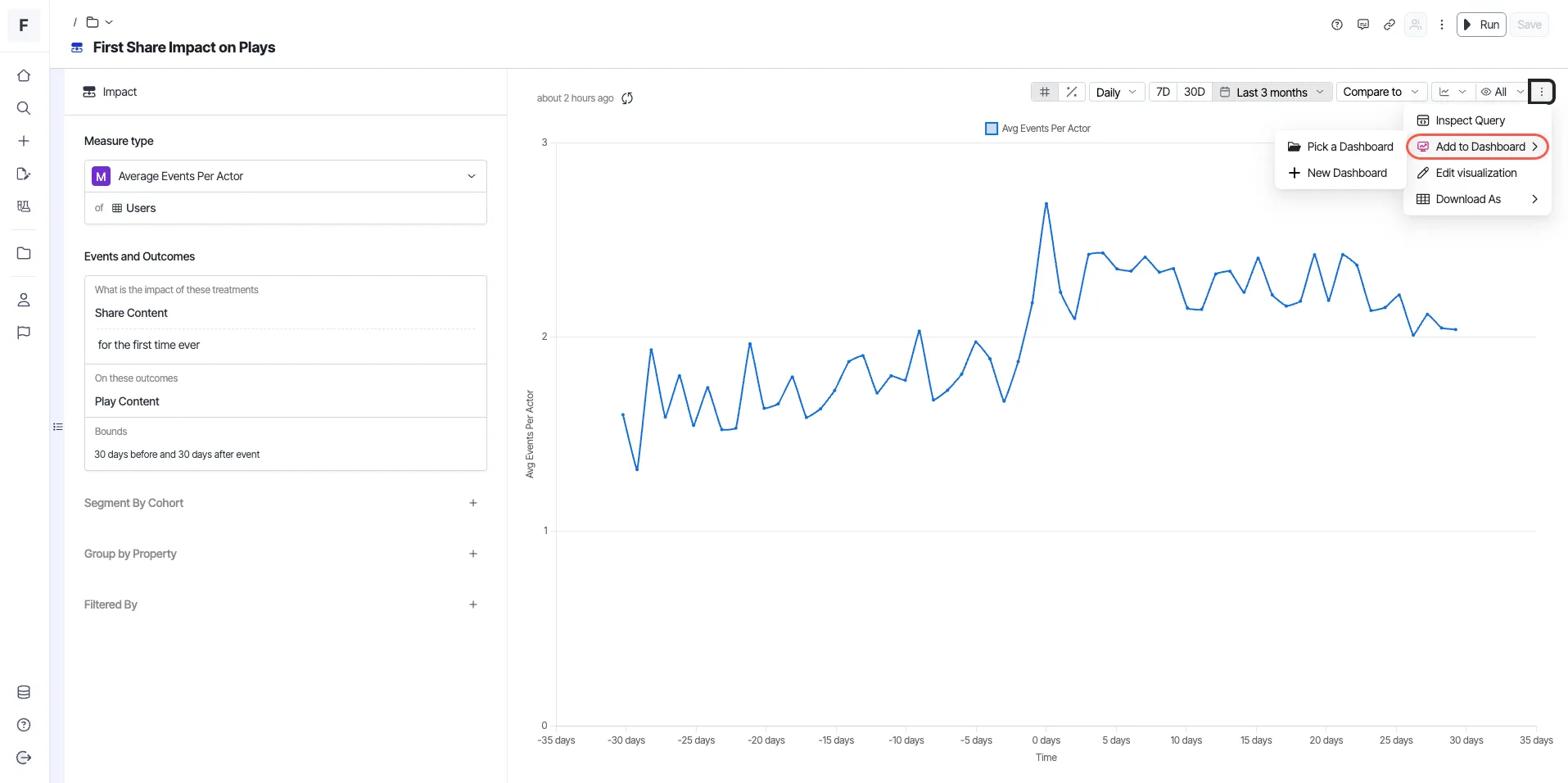

The impact template's visualization module lets you run and view the analysis in a chart. It also lets you edit the visualization, examine the underlying SQL query, and add the chart to a dashboard.

There are five important sections in this module.

These options let you switch the values on the Y-axis from absolute values to percentages and vice versa in one click. This feature is particularly useful when dealing with multiple segments, as using absolute values lets you see a clearer breakdown of how many individuals are in each segment.

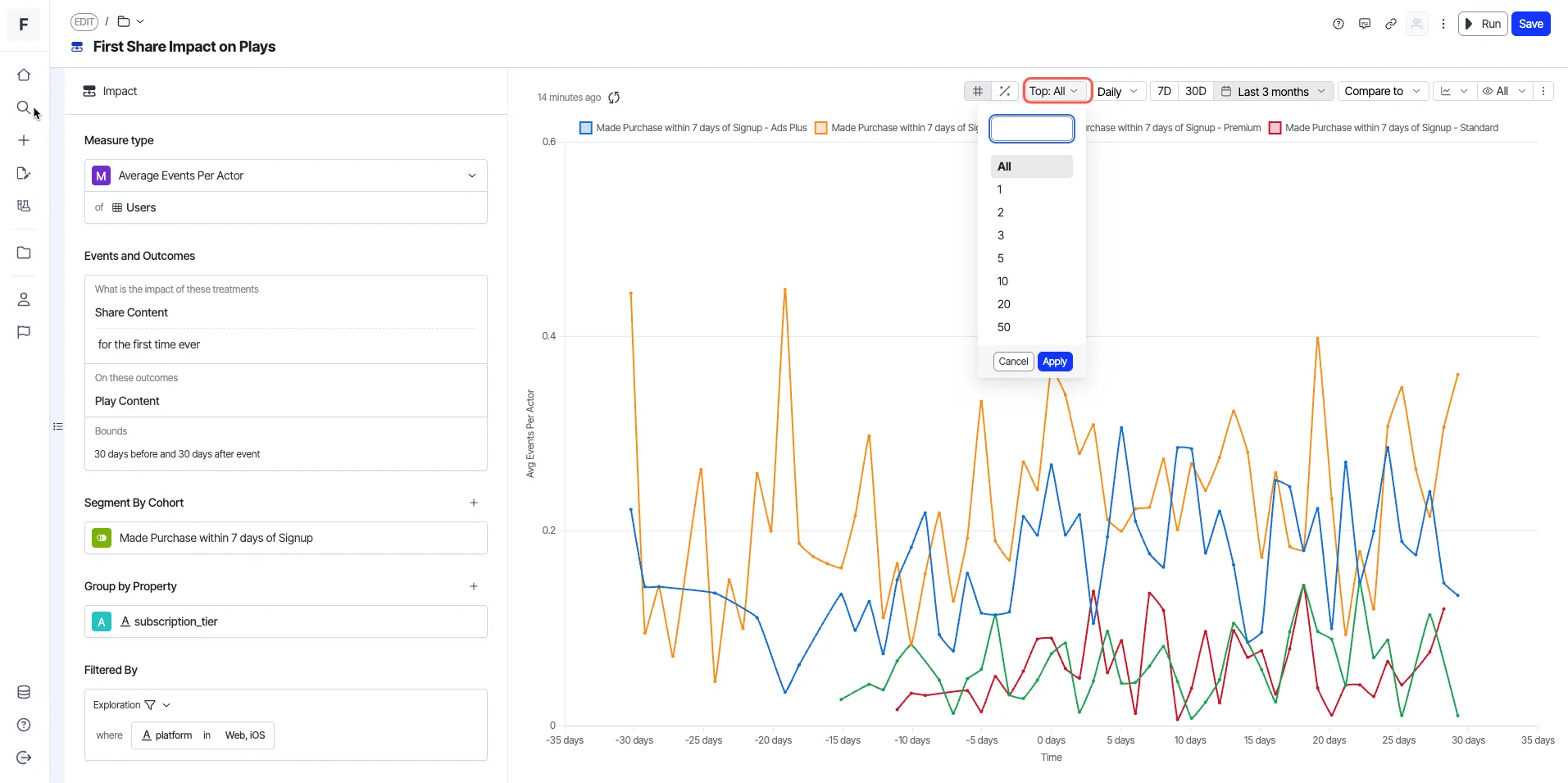

To choose the number of top segments you want to display in your impact analysis, click the Show top drop-down list and enter the required number. You can also use the + and – symbols to enter your input. The total count of selected events defines the top attribute values. You can also set the number of top 'n' segments when you create beelines.

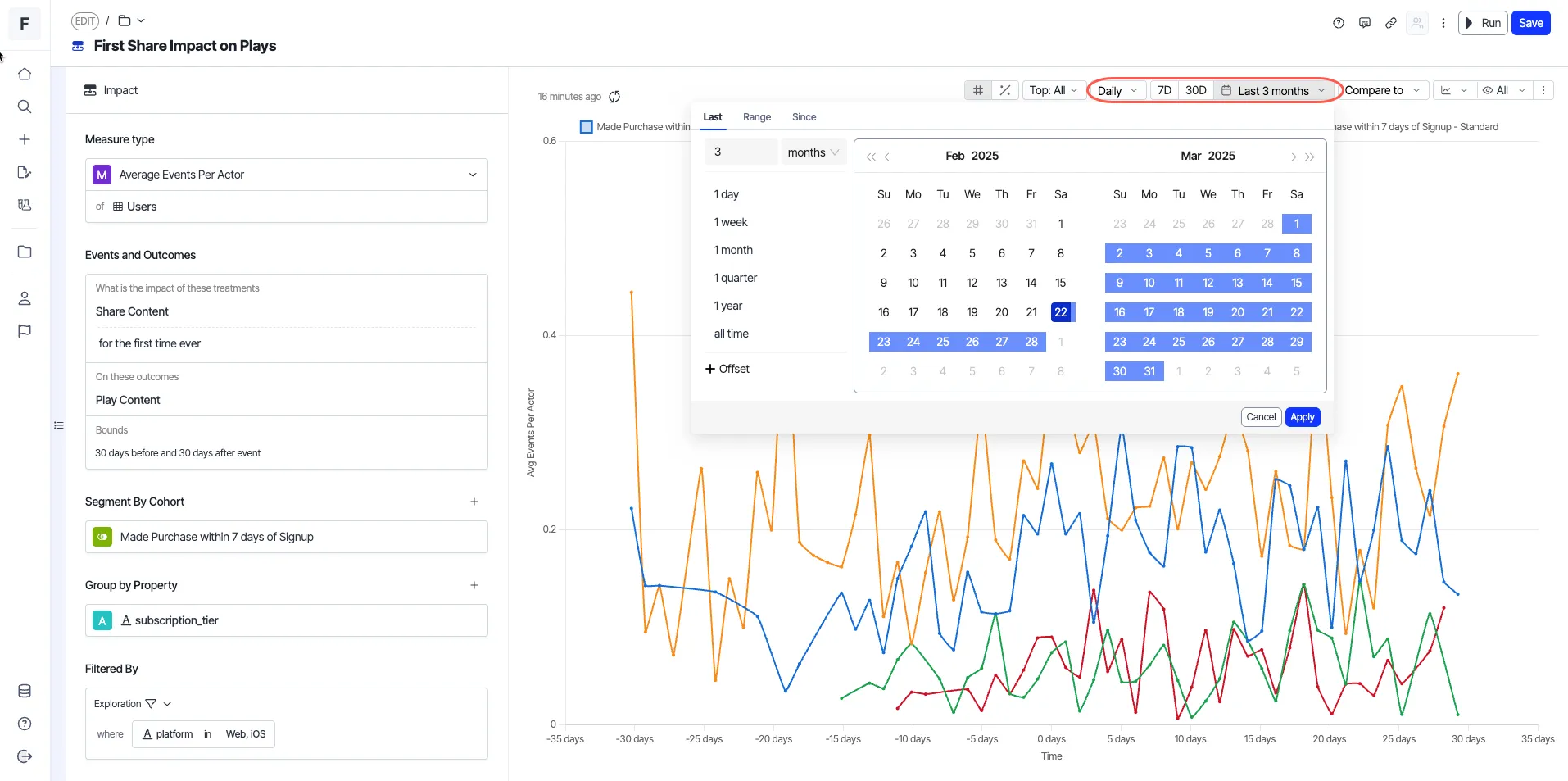

You can set the time range using a drop-down list or choose from the quick options and iterate through different choices of time range and time grain without leaving the chart. It is also possible to set a lag by clicking Offset and setting the Ending.

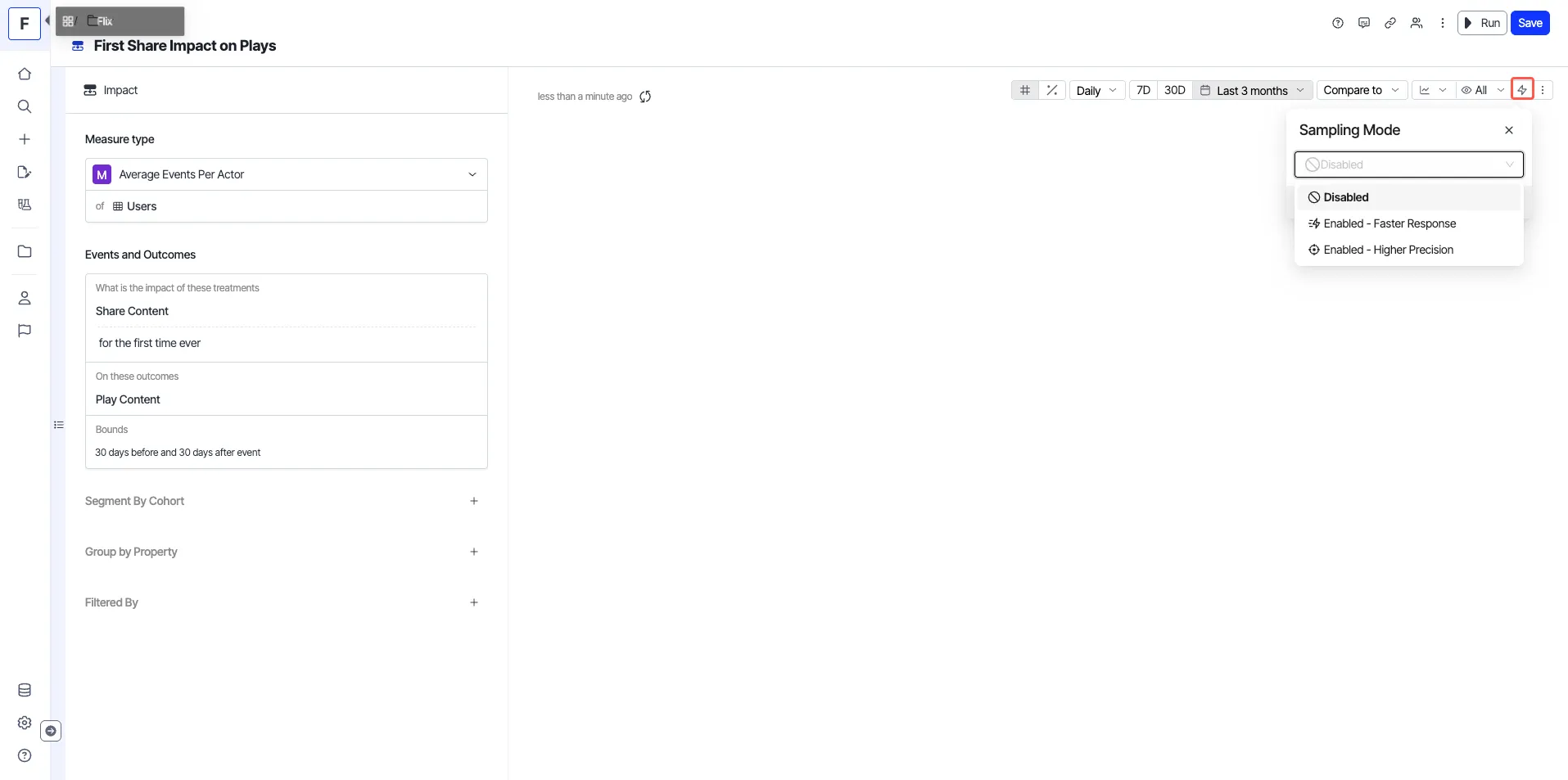

In the visualization module, you can configure sampling modes for your exploration by clicking the lightning icon at the top of the exploration. The drop-down list displays two sampling modes: Enabled Faster Response or Enabled Higher Precision.
