Integration technology overview
Optimizely Configured Commerce has been configured and integrated with many backend ERP's and PIM systems. Many of these vary in implementation and customization. The following describes common integrations and considerations.

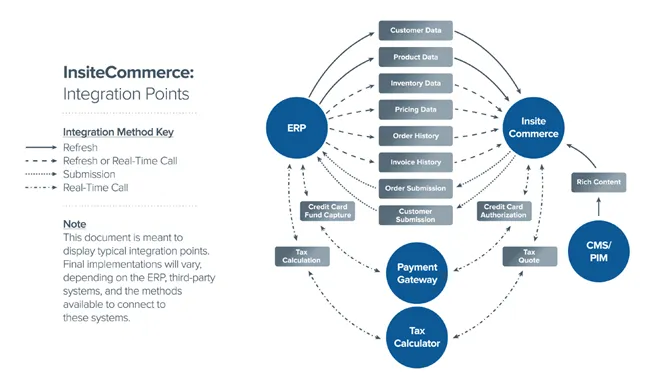

Common integrations

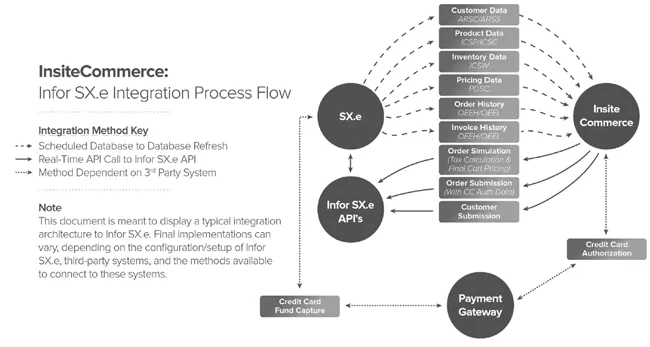

Infor SX.e example

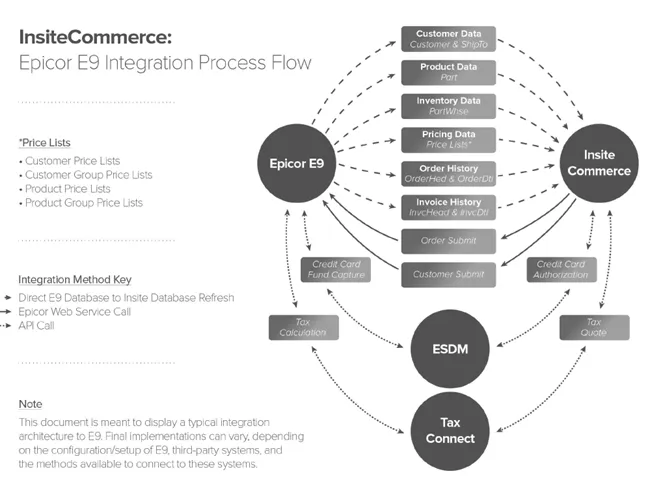

Epicor E9 example
Integration approaches
Traditional

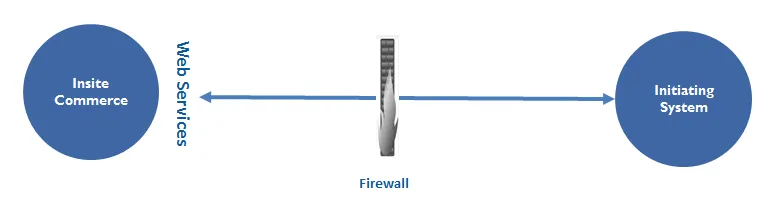

SOAP web services or RESTful services
- Products
- Inventory
- Pricing
- Customers
- Dealers / Sales Reps
- History of Orders / Invoices
- Shipments

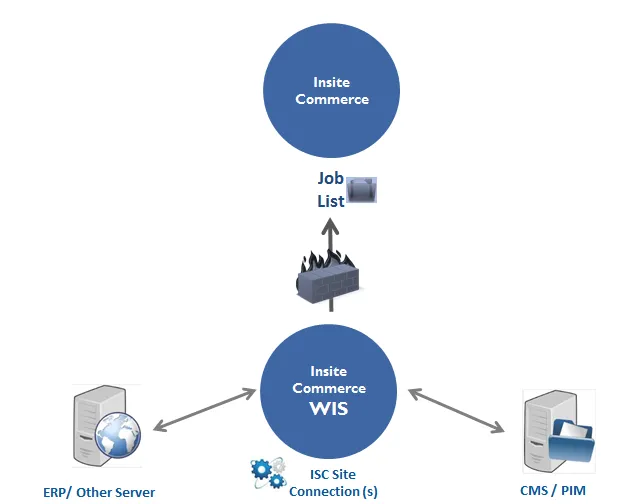

Configured Commerce Windows Integration Service (WIS)
Extract-Transform-Transport-Load Agent
Connection types
- SQL Server
- OleDb / Odbc
- Web Service
- CSV File (Flat File)
- Sap .NET Connector
Configured Commerce integration flow example
Infrastructure topology
Deployment topology
Enterprise scale
Expectations for the design and development of non-payment connectors
For most connectors, the implementation partner is responsible for the evaluation, design, development, implementation, and testing of the connector.
Although the Optimizely team has created several connectors to common ERP, PIM, tax, and other data providers, these connectors should serve as a starting point, only, upon which the implementation partner may need to extend further to fit the unique needs of each client.
See Rules of Engagement: Payment Gateways for Configured Commerce for more detail.
Expectations for the design and development of payment gateways
In December 2023, the Optimizely Configured Commerce engineering team will release an integration with Spreedly, a global payments ecosystem. The addition of Spreedly grants clients access to more payment gateway options. Clients implementing new payment gateways on their Configured Commerce storefront must select a payment gateway and a payment method that Spreedly supports.
See Payment gateway development expectations for more detail.
