Install Bolt payment provider

4 min

Set the configuration options that your Bolt merchant account provides. The values are in the Developers section of the Bolt site.

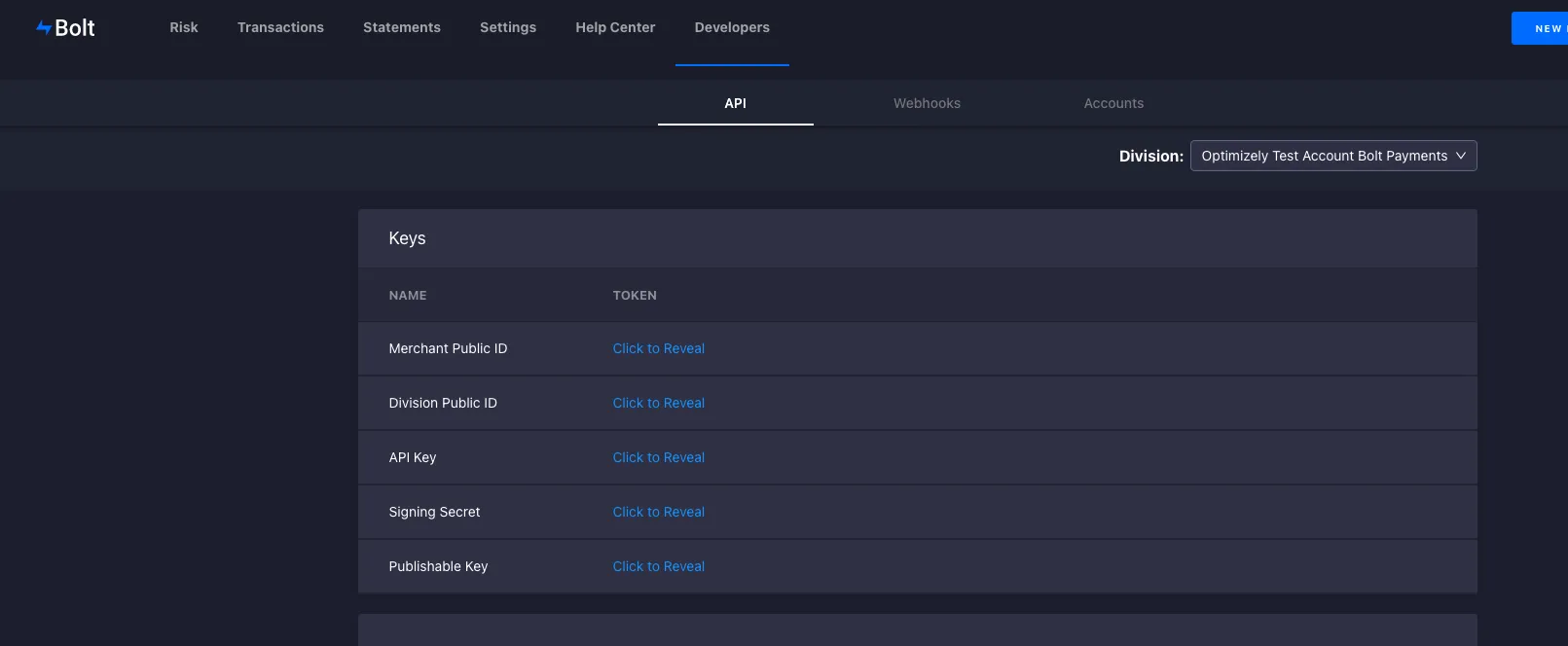

Screenshot of the Bolt Developers page that shows the API key, publishable key, and signing secret values

Set the values in appsettings.json or in the startup file.

{
  "EpiServer" : {
    "Commerce" : {
      "Bolt" : {
        "PublishableKey" : "key",
        "ApiKey" : "Api Key",
        "DivisionPublicId" : "Public Id",
        "SigningSecret" : "Signing Secret",
        "AutoCapture" : true,
        "EnvironmentType" : "Sandbox"
      }
    }
  }
}

services.Configure<BoltOptions>(x =>
{
    x.EnvironmentType = EnvironmentType.Sandbox;
    x.PublishableKey = "Key";
    x.ApiKey = "Api Key";
    x.DivisionPublicId = "Public Id";
    x.SigningSecret = "signing secret";
    x.AutoCapture = true;
});

Configure Bolt payment provider

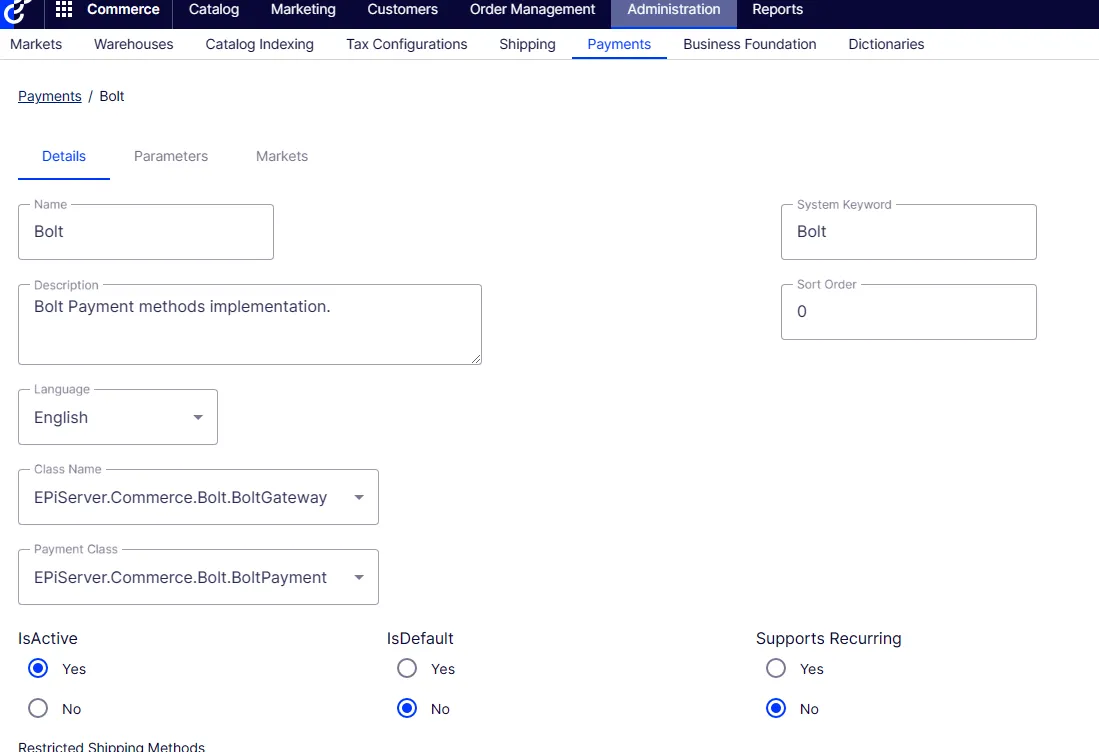

Go to Commerce > Administration > Payments.

Click Create.

Enter the payment provider details. Set System Keyword to Bolt, Class Name to BoltGateway, and Payment Class to BoltPayment.

Click Save.

Create a Bolt payment provider for each language you plan to support.

Implement Bolt payment provider

📘 Note The Bolt payments API requires two-digit country codes, but a default Commerce installation provides three-digit country codes. Update the Country table for the countries you plan to support — there is no way to update the table through the user interface. If you do not use CountryManager on the front end for your addresses, skip this step.

For instructions on implementing Bolt checkout, see the Bolt documentation. An example is also available in Foundation.

When creating a Bolt payment, set the following properties so the Bolt gateway can process the transaction:

var total = cart.GetTotal(_orderGroupCalculator);
var payment = viewModel.Payment.CreatePayment(total.Amount, cart);

if (payment is BoltPayment boltPayment) {
  // The token comes from the Bolt JavaScript tokenize function. Required only for new card payments.
  boltPayment.Token = "token";

  // The CreateAccount value comes from the Bolt createAccount widget flag in the Bolt JavaScript API.
  boltPayment.CreateAccount = true;

  // Set CardId only for saved cards. For non-saved cards, the gateway sets this field automatically on Auth or Capture.
  boltPayment.CardId = "cardId";

  // The API service is in the EPiServer.Commerce.Bolt namespace. The code and scope come from the response of the authorization component in the Bolt JavaScript SDK.
  var token = await _apiService.GetTokenAsync(code, scope);

  // This field is not persisted to the database, but is required to make a request on behalf of the user.
  boltPayment.AccessToken = token.AccessToken;
}

cart.AddPayment(payment, _orderGroupFactory);
payment.BillingAddress = _addressBookService.ConvertToAddress(viewModel.BillingAddress, cart);

To retrieve a list of saved Bolt cards:

[HttpGet]
public async Task<IActionResult> GetBoltCards([FromQuery] string code, [FromQuery] string scope) {
  var token = await _apiService.GetTokenAsync(code, scope);
  if (token == null) {
    return new JsonResult(null);
  }

  var account = await _apiService.GetAccountAsync(token.AccessToken);
  if (account == null) {
    return new JsonResult(null);
  }

  account.Token = token.AccessToken;
  return new JsonResult(account);
}
