Develop apps for CMS
An app extends the functionality of the Optimizely Content Management System (CMS) 13 website with initializable modules, gadgets, audience criteria, virtual path providers, page and search providers, and so on.
Develop an app
Follow these guidelines to build apps that integrate with CMS 13 and extend its editing experience, content delivery, or administrative features.
Optimizely and third parties can develop apps for CMS 13. The module system (or shell modules) defines an app's folder structure and configuration system and extends the user interface. Use the module system to build any module.
Optimizely loads and processes app assemblies during site start-up. An app can contain components like InitializableModule and plug-ins that require assembly scanning.
Package an app as a NuGet package using the following guidelines.
- Place the app in a shell module directory. For example, a Google Maps dynamic content app could reside in ~/modules/EPiServer.Samples.AddOns.GoogleMaps/.
- Reference assembly names in Web Forms pages, controls, and strongly typed MVC views of your apps. User control example:
<%@ Control Language="C#"
AutoEventWireup="false"
CodeBehind="Map.ascx.cs"
Inherits="EPiServer.Research.DynamicContent.Map, GoogleMapsDynamicContent" %>Strongly typed MVC view example:
<%@ Control Language="C#" Inherits="System.Web.Mvc.ViewUserControl<ColoredModel>" %>
<%@ Assembly Name="EPiServer.Samples.Module" %>
<%@ Import Namespace="EPiServer.Samples.Module.Models" %>- Make paths to included resources relative to the app directory in the modules directory. The EPiServer.Shell.Paths class provides methods to resolve URLs to resources located in the directory of the corresponding shell module directory. A specified assembly (or any type from the app assemblies) identifies the app module. Resolve a path to an app resource by type
// MapDynamicContent is type from app assembly:
string pathToControl = Paths.ToResource(typeof(MapDynamicContent), "Map.ascx");
// load control using resolved path:
page.LoadControl(pathToControl);Resolve a path to a client resource
// register client script using resolved path:
string pathToAddonScript = Paths.ToClientResource(typeof(MapDynamicContent), "ClientResources/MapContent.js");
Page.ClientScript.RegisterClientScriptInclude("MapContent.js", pathToAddonScript);- Use relative paths to resources in app GUI plug-ins. Plug-in attributes provide properties for that.
- GuiPlugInAttribute.UrlFromModuleFolder – Define the URL to a control relative to the app module directory (found in the EPiServer.PlugIn namespace).
- GuiPlugInAttribute.Url – Returns a resolved URL to an app control (found in the EPiServer.PlugIn namespace).
- DynamicContentPlugInAttribute.ViewUrlFromModuleFolder – Define the URL to view a control for this dynamic content, relative to the app module directory (found in the EPiServer.DynamicContent namespace).
- DynamicContentPlugInAttribute.ViewUrl – Returns a resolved URL to a view control (found in the EPiServer.DynamicContent namespace). Define paths to plug-in resources as follows:
[GuiPlugIn(UrlFromModuleFolder="Control.ascx")]
[DynamicContentPlugIn(ViewUrlFromModuleFolder ="View.ascx")]- Specify the path to the template file, relative to the module folder, in the Path property of the RenderDescriptorAttribute on a page or a block template. Do not make the path application-relative or an absolute virtual path. The system resolves the virtual path to the content template file in the app directory. Example:
[RenderDescriptor(Path = "Blocks/SampleBlockControl.ascx")]The resolved virtual path to the block template in a public app is ~/modules/<package ID>/Blocks/SampleBlockControl.ascx. The directory structure where template files reside must follow the namespace convention if you do not set the Path property of RenderDescriptorAttribute on a page or block template. See Content types and Content templates.
- Use the Optimizely platform LocalizationService model with embedded language files for apps and assemblies. Shell modules are automatically scanned for XML localization data. Standard resource files are also supported.
- Add required client resources to the page without modifying templates. This injects styles, scripts, or HTML on pages.
- Version client resources to avoid caching problems when you upgrade. See Client resources.
- Keep configuration changes to a minimum.
- The following are not supported:
- Configuration file
- Source code transformation
- PowerShell scripts and other tools
- Third-party apps cannot use an EPiServer namespace.
Create an app package
- Create a package from an assembly, a project, or a convention-based working directory. See the tools and documentation available from Nuget to create a NuGet package.
- Create the NuGet (nuspec) manifest by running the following command: nuget spec
- Edit the nuspec file and specify the information for your app package. If you create your package from a project, use replacement tokens for the app package ID, version, author, and description. The following nuspec file example is for the Google Maps app:
<?xml version="1.0"?>
<package xmlns="http://schemas.microsoft.com/packaging/2010/07/nuspec.xsd">
<metadata>
<id>$id$</id>
<version>$version$</version>
<title>Google Maps dynamic content</title>
<authors>$author$</authors>
<owners />
<iconUrl>http://world.episerver.com/PageFiles/3/Icons/Nuget.png</iconUrl>
<requireLicenseAcceptance>false</requireLicenseAcceptance>
<description>Allows to add Google Maps as dynamic content on pages.</description>
<tags>EPiServerPublicModulePackage Google Maps Dynamic</tags>
<dependencies>
<dependency id="EPiServer.Samples.SampleFoundation" version="1.2" />
<dependency id="EPiServer.CMS.UI" version="7.5" />
</dependencies>
</metadata>
</package>Public and protected apps
Public and protected apps differ in the user access rights required to access the app files and routes.
- Public – Accessed by any site user, including anonymous users. Make your app public only if it provides content such as page templates, dynamic content rendering controls, public MVC views, or client resources for the site visitor. If the size of the public content is relatively small, consider including it as an embedded resource in one of the app's binaries and make the app protected instead.
- Protected – Accessed only by the authorized users within WebEditors or WebAdmins roles. Consider making your app protected because it is a more secure approach.
Public and protected apps have the following file locations and virtual paths:
- Public app files reside in the modules folder, by default, under the site root (the same path where all the public shell modules are located).
- Public apps have a default virtual path starting from ~/modules/<package ID>/.
- Protected app files are located by default in ~/modules/\_protected/<package ID>/.
- Protected apps have a default virtual path starting from ~/<EPiServerProtectedPath>/modules/<package ID>/ (for example /EPiServer/Modules/<package ID>).
📘 Note Mark public apps with the EPiServerPublicModulePackage tag. Mark protected apps with the EPiServerModulePackage tag.
Dependencies and versions
If your app requires other apps, add them to the dependencies list in the nuspec file. The other apps install automatically when a user installs your app. The installation aborts if the other apps cannot be installed in the environment.
App packages must follow the Semantic Versioning (SemVer) scheme. This versioning format clarifies which versions are compatible and which introduce breaking changes.
SemVer uses the format Major.Minor.Patch. Each segment corresponds to a level of change:
- Major – Breaking changes.
- Minor – New features, but backward compatible.
- Patch – Backwards-compatible bug fixes only.
For example, if you require the feature set from version 1.3 of a dependency, set [1.3,2) as the version range, which accepts versions known to be compatible. When version 2.0 is released, it may or may not be compatible. If it is compatible, you can change the version range to [1.3,3) in the next update. Otherwise, the version range, after your code base is changed to run with version 2.0 of this dependency, is changed to something like [2.0,3). See NuGet Docs for version ranges in NuGet.
Prerequisite dependency on an installed product
Your app might depend on a product that is not installed and is a prerequisite for the app to function. Assemblies installed in the application and system packages (such as EPiServer.CMS.Core and EPiServer.CMS.UI) appear as virtual packages in the NuGet environment. Add dependencies to these virtual packages. Dependencies must be actual NuGet packages for Visual Studio-enabled apps.
Package directory structure
Structure the package directory according to NuGet Docs conventions. To create the package from a Visual Studio project, run the following command:
nuget pack AddOnProject.csprojIf you prepared a NuGet manifest (nuspec) file and a convention-based directory structure, create the package with the following command:
nuget.exe pack addondirectory\addon.nuspecUse NuGet Package Explorer

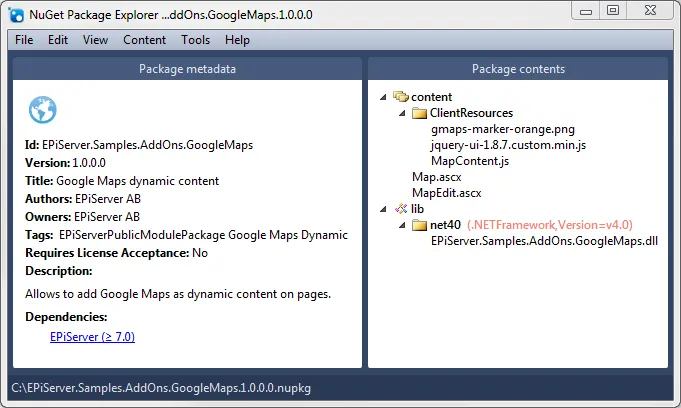

Use the NuGet Package Explorer GUI tool to view metadata and create packages. The following example shows the Google Maps app package opened in NuGet Package Explorer.
Develop Visual Studio-enabled apps
Visual Studio-enabled apps let developers install and manage app dependencies directly from Visual Studio, streamlining the development workflow.
Attach dependencies to ordinary NuGet packages rather than as references to assemblies. In most scenarios, the primary assembly of the NuGet package matches the ID of the package.
Content files must have a path in nuspec as they display on site.
Public apps
Paths for content files should include \modules\<packageid> for public apps.
<file src="Settings.aspx" target="Content\modules\<packageId>\Settings.aspx" />Protected apps
Paths for content files should include \modules\_protected\<packageid>\ for protected apps.
<file src="Views\Setting\Index.aspx" target="Content\modules\_protected\<packageId>\Views\Setting\Index.aspx" />The NuGet package should contain a module.config file in the package root (for example, \<file src="module.config" target="Content\modules\<packageId>\module.config" />\). The module.config must contain a tags attribute that contains either EPiServerModulePackage or EPiServerPublicModulePackage, which is required for the Optimizely app user interface to distinguish the app from other shell modules. The module.config can contain a description attribute that describes the module in the app user interface (UI), and should list assemblies the package contains. The following code sample shows a minimal module.config.
<?xml version="1.0" encoding="utf-8"?>
<module loadFromBin="false"
description="Allows to run various support tools on the site."
tags=" EPiServerModulePackage ">
<assemblies>
<add assembly="DeveloperTools" />
</assemblies>
</module>EPiServer.Packaging.Converter converts old apps to a format that lets you install the app from Visual Studio. A readme file describes how to use the converter.
ZIP compressed content
Deliver content in your app as a compressed ZIP archive by compressing the whole content structure below the package folder to a ZIP file. Give it the same name as the package and place it within the package directory, for example:
Content\modules\<packageId>\<packageId>.zipOptimizely scans module directories during startup and adds a virtual path provider for any archive found as long as it follows this convention.
Do not use this feature if your module contains large files, because the content is kept in a memory cache. The feature is useful for Visual Studio apps with many small files. It prevents the module from adding files to the Visual Studio project of developers installing your app. If you want to debug files in an app that uses this functionality, extract the archive into its current directory and delete or rename the archive.
Execute custom code for apps
Use these extension points to run setup logic, migrate data, or clean up resources during app lifecycle events.
Execute custom code at the following extension points when certain actions are performed:
- After the app installation
- After an app update
- Before an app uninstallation (does not trigger when uninstalling an app using Visual Studio)
If your app requires executing custom code only on web application start-up and does not need to be notified about installations, updates, or deletions, consider using IInitializableModule.
Base class for your custom code
To execute custom code when the status of the app package changes, the custom code should include a class inherited from the abstract class EPiServer.Packaging.PackageInitializer in the EPiServer.Packaging assembly:
public abstract class PackageInitializer: IInitializableModule, IPackageNotification {
#region Implementation of IInitializableModule
public virtual void ConfigureContainer(ServiceConfigurationContext context);
public virtual void Initialize(InitializationEngine context);
public virtual void Uninitialize(InitializationEngine context);
public virtual void Preload(string[] parameters);
#endregion
#region Implementation of IPackageNotification
public abstract void AfterInstall();
public abstract void AfterUpdate();
public abstract void BeforeUninstall();
#endregion
}The PackageInitializer class combines the IInitializableModule and IPackageNotification interfaces. Inheritors of this class are instantiated and executed by the Optimizely Framework initialization system in the same manner as for the regular IInitializableModule.
The Initialize method in PackageInitializer determines whether the app (package ID) that contains the assembly with the inheriting class is newly installed, and calls the AfterInstall method if necessary; if the app is newly updated, calls AfterUpdate if necessary.
When you override the Initialize method, call the base implementation before proceeding with the initialization to ensure that the AfterInstall and AfterUpdate methods are executed before the initialization.
The BeforeUninstall method is called before the package contents are removed when the user clicks Uninstall in the app system.
AfterInstall method
The AfterInstall method is called after the app installation is complete and only the first time the application starts, (as opposed to the Initialize method, which is called each time the application starts).
The following procedure shows the app installation and the point where the AfterInstall method is called:
- The user clicks Install in the app management user interface.
- The app is deployed to the site.
- Site restart occurs automatically, or the user clicks Restart in the app management user interface.
- On system startup, the app assemblies load into the AppDomain.
- The Initialize method is called for the initializable modules.
- The AfterInstall method is called from base.Initialize.
To get custom code executed after an app installation:
- Create a class that inherits from EPiServer.Packaging.PackageInitializer.
- Decorate the class with a [ModuleDependency(typeof(EPiServer.Packaging.PackagingInitialization))] attribute.
- Override the AfterInstall method and put your custom code inside this method.
- If the app requires custom initialization:
- Override the Initialize method.
- Call base.Initialize in the overridden method body.
- Place your custom initialization code after the base.Initialize method call.
AfterUpdate method
The AfterUpdate method executes after the app update is complete and is called only the first time the application starts after updating the app.
The following procedure shows the app installation and the point where the AfterUpdate method is called:
- The user clicks Update in the app management user interface. The updated app is deployed to the site.
- Site restart occurs automatically, or the user clicks Restart in the app management user interface.
- Upon system startup, the app assemblies are loaded into the AppDomain.
- The Initialize method is called for the initializable modules.
- AfterUpdate is called from base.Initialize.
To execute custom code after an app update:
- Create a class that inherits from EPiServer.Packaging.PackageInitializer.
- Decorate the class with [ModuleDependency(typeof(EPiServer.Packaging.PackagingInitialization))] attribute.
- Override the AfterUpdate method and put your custom code inside this method.
- If the app requires custom initialization:
- Override the Initialize method.
- Call base.Initialize in the overridden method body.
- Place your custom initialization code after the base.Initialize method call.
BeforeUninstall method
The BeforeUninstall method executes immediately after the user clicks Uninstall in the app management user interface, but before the uninstallation occurs. If an exception occurs in the BeforeUninstall method, the uninstallation is aborted. It does not trigger when uninstalling an app using Visual Studio.
The following procedure shows the process of app uninstallation:
- The user clicks Uninstall in the app management user interface.
- BeforeUninstall is called.
- The actual removal of the app is performed (but app assemblies are still loaded in the AppDomain).
- Restart occurs automatically, or the user clicks Restart in the app management user interface.
- Assemblies from the deleted app are no longer loaded into the AppDomain.
To execute custom code before app uninstallation:
- Create a class that inherits from EPiServer.Packaging.PackageInitializer.
- Override the BeforeUninstall method and put your custom code inside this method.
Manage dependencies
If an app is dependent on other systems or apps, you must indicate these dependencies in the ModuleDependencies element so that it calls initialization methods after those of the listed dependencies.
To load the app automatically when a dependency is loaded, set the type attribute to RunAfter. This is needed for CMS UI apps; otherwise, they are not loaded.
