Sync groups from Entra ID

14 min

In Opti ID, user access to any entitled product is done using groups. For more information on groups in Opti ID, see Manage groups.

To ease the process of assigning users to groups, Opti ID lets you automatically add users to existing groups within Opti ID when they sign in. To enable this, you must configure the single sign-on (SSO) provider to send a groups claim with the assertion during user login.

Prerequisites

Configure the SAML or OIDC SSO connection in your identity provider (IdP).

Configure SAML SSO with Entra ID

Configure OIDC SSO with Entra ID

Create groups in your IdP with names that mirror the Opti ID group names you want to sync.

Considerations

Important

This group sync does not handle deprovisioning. If you want your group sync to handle deprovisioning in addition to securely automating user and group provisioning, you should configure SCIM instead.

The groups claim must be a string array. The string values must be the names of the groups as represented in Opti ID.

The groups specified in the groups claim must already exist in the Opti ID organization that the SSO provider exists in.

When users are created using just-in-time (JIT) provisioning, they are added to the Everyone group. If the SSO provider provided any groups claims for the logged-in user, and groups with the same name exist in Opti ID, then users are added to user groups in Opti ID when they sign in.

The user creation process for JIT provisioning happens regardless of the groups claim, so even if the groups claim is missing or has groups not found in Opti ID, the user is still created and added to the Everyone group.

When you add a user in the upstream SSO provider, if Opti ID receives any groups as claims at the time of login and these groups exist in Opti ID with the same name, Opti ID adds the user (if not already present) along with the groups.

When you update a user in the upstream SSO provider (for example, add groups to the user), and Opti ID receives these groups as claims at the time of login, Opti ID adds the user to those groups, provided groups with the same name exist in Opti ID.

The sync from your SSO provider to Opti ID only adds groups (or users to groups). If you remove a group (or a user from a group) in your SSO provider, you must manually remove that group (or user from that group) in Opti ID.

If you change the name of a group in Opti ID, you must make the same changes in your SSO provider. Similarly, if you change the name of the group in your SSO provider, you must make the same changes in Opti ID. Otherwise, any group membership changes you make in the SSO provider will not be reflected in Opti ID.

Set up group sync in Entra ID

You should review some initial considerations for using Entra ID. The feature availability is based on the current Entra ID SKU noted below. For Application groups functionality, the Entra ID instance must be a premium SKU. If you do not have access to the premium SKU, you can use alternative methods to provide group information in the claims while logging into Opti ID by assigning individual users to the application.

In Entra ID, go to the enterprise application you set up for SSO.

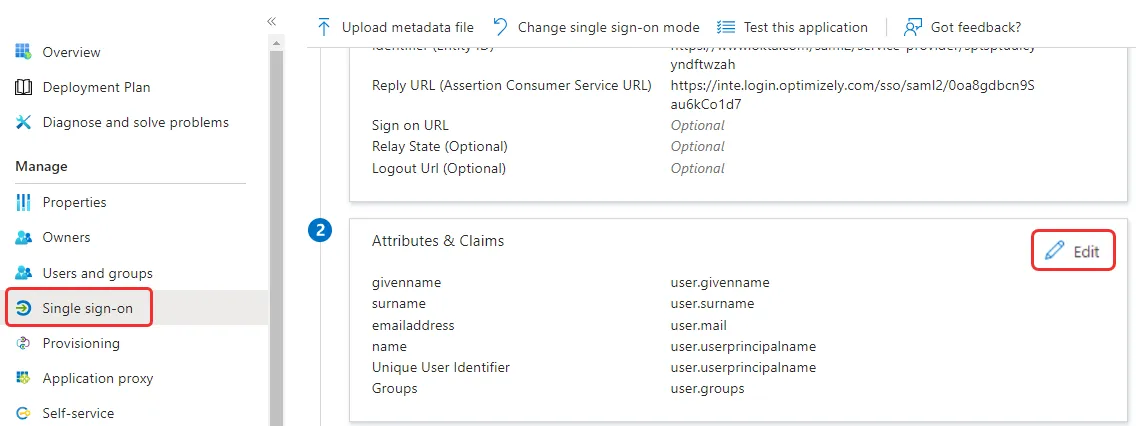

Click Single sign-on > Edit in the Attributes & Claims section.

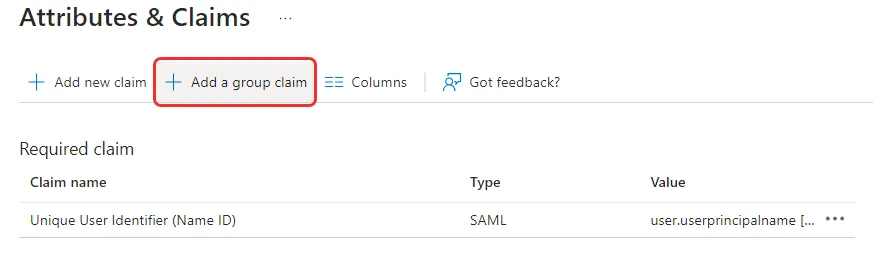

Click Add a group claim.

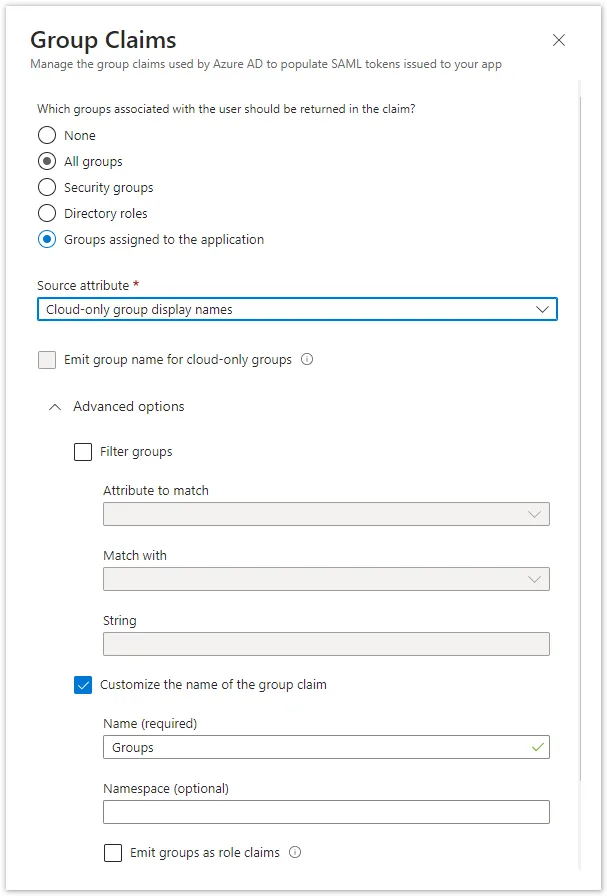

On the Group Claims page, select the desired groups to be returned in the claim, such as Groups assigned to the application.

Expand the Source attribute drop-down list and select the attribute that will have the group name in it.

Note

The Source attribute value must match the group name in Opti ID for the mapping to work.

Microsoft Entra ID-based customers – Select Cloud-only group display names.

On-premises customers who sync to Azure AD – Select sAMAccountName, having that attribute configured correctly in Active Directory.

(Optional) Set the Filter groups section in Advanced options, based on your organization's requirements, to send only the groups you want to sync with Opti ID.

Customize the name of the group claim with Groups as the Name and no Namespace. The other checkboxes can remain cleared.

The SSO provider sends the group IDs in an array, which Opti ID receives and adds the users to the appropriate groups when they sign in.

Assign users to groups in Entra ID

In the Azure portal, go to Microsoft Entra ID > Groups.

Select the group you want to manage.

Select either Members or Owners.

Click Add (members or owners).

Search for and select the users you want to add (you can select multiple users at one time).

Click Select.

The Group Overview page updates to show the number of members or owners you added to the group.

Set up groups claim in SAML or OIDC app

SAML app

In Entra ID, go to the enterprise application you set up for SSO.

Go to Single sign-on > Attributes & Claims > Edit.

Click Add a group claim.

On the Group Claims page, select the desired groups you want to return in the claim (like Groups assigned to the application).

Select the attribute that will have the group name in it for the Source attribute drop-down list. The Source attribute value must match the group name in Opti ID for the mapping to work.

If you are Entra ID-based, Cloud-only group display names usually works.

If you are on-prem, sAMAccountName usually works as long as you configure that attribute correctly in your active directory.

(Optional) Set the Filter groups section in Advanced options to send only the groups you want to sync with Opti ID, based on your organization's requirements.

Customize the name of the group claim with Groups as the Name and no Namespace. You can leave the other checkboxes unselected.

OIDC app

In Entra ID, go to the application registration you set up for SSO.

Under Manage, click Token configuration.

Click Add groups claim.

Select the group types to return (Security groups, Directory roles, all groups, or Groups assigned to the application).

Click Save.

Complete the following steps to configure groups optional claims through the application manifest:

Select the application for which you want to configure optional claims.

Under Manage, click Manifest.

Using the manifest editor, for ID token type, modify the groups claim to use the optionalClaims section in the manifest as follows:

"optionalClaims": {
    "idToken": [
        {
            "name": "groups",
            "additionalProperties": [
                "cloud_displayname"
            ]
        }
    ]
}

If you are Entra ID-based, adding cloud_displayname in additionalProperties usually works.

If you are on-prem, adding sam_account_name in additionalProperties usually works.

(Optional) Go to Single sign-on > Attributes & Claims > Edit to set the Filter groups. Add group filter criteria based on your organization's requirements to send only the groups you want to sync with Opti ID.

The SSO provider sends the group names in an array, which Opti ID receives and adds the users to the appropriate groups when they sign in.

Create groups in Opti ID Admin Center

Go to Group Access > Groups in the Opti ID Admin Center.

Click Add Group to create a group with the same name as the one you created in your SSO provider. This syncs the group from your SSO provider to the user the next time they log in using Opti ID.

This group name must exactly match the group name you send from your SSO provider. Your SSO provider configures this value, so you may need to edit the group name later to match the name your SSO provider sends. For example, in some situations, the best value to send is the IdP's Group ID. In this case, you should make the group name in Opti ID the GUID of the IdP's Group ID.

Opti ID has Everyone and Admin Center Administrators groups available by default. All users remain in Everyone, regardless of what groups the SSO provider sends. If you create an Admin Center Administrators group in your SSO provider, you can sync those users to the corresponding group in Opti ID.

Configure roles and groups

Configure roles and groups in the Opti ID Admin Center. See the following topics.

Roles

Groups

Events when groups sync to Opti ID

Initial login

When a user logs in for the first time to Opti ID, group claims in the token, if any, are matched with groups in Opti ID (by group name for your organization). These groups are then assigned to the user at the time of their first successful login.

Note

You must have domain-based routing set up for successful group assignment at the time of initial login.

If you have domain-based routing set on your IdP, you can create JIT users in Opti ID. You can also add users to your organization explicitly in the Opti ID Admin Center.

In either case, if any matching groups are found, they are assigned to the user upon successful login.

Subsequent logins

In case of subsequent logins by a user through your IdP, any new groups assigned to the user since their previous login get assigned in Opti ID, provided matching groups with same name are found in Opti ID.

Note

If you removed a user from a group in your SSO provider, subsequent logins by that user do not remove them from that group in Opti ID. You must manually remove the user from the group in Opti ID.

After you complete the steps in this article to sync your SSO groups, you can still explicitly assign the Opti ID groups (corresponding to your SSO groups that are set up in Opti ID) to the users in your organization in the Opti ID Admin Center.
