Where

10 min

The where argument in Optimizely Graph filters and searches for values within your query to refine the results you receive. Use it to scope a query to a specific content slice (for example, biographies for a single author, or pages modified after a release date) so the response carries only the items your experience needs.

The where clause takes one or more filter conditions:

where: [{filter_condition}]

The filter_condition is defined as follows:

predicate: {
      filter_operators: expression
}

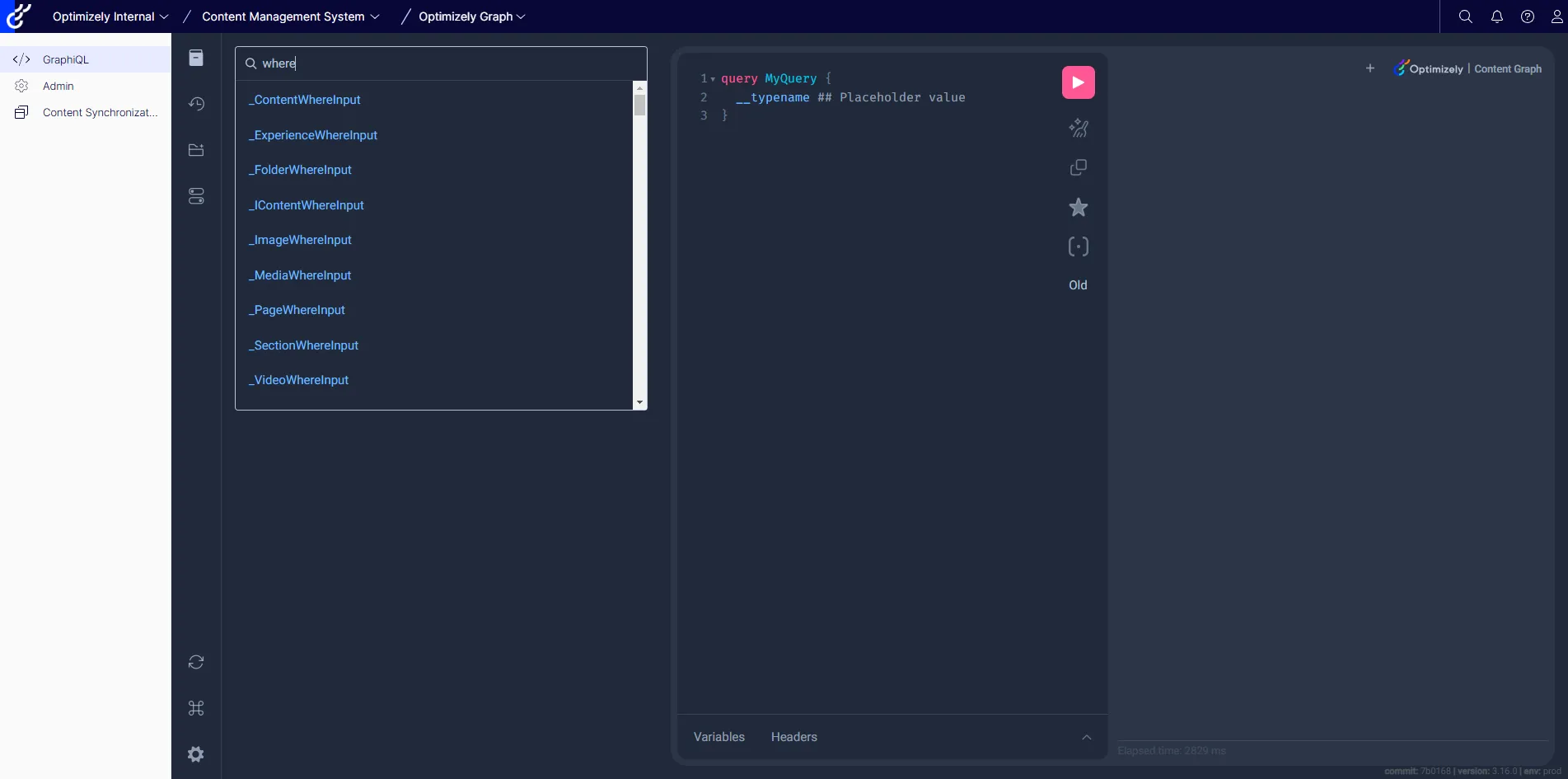

Use the GraphiQL schema explorer to understand how the where parameter works. This tool visually represents the available fields and their types, letting you identify which fields you can filter using the where parameter. The available fields differ depending on the content type, but some are included as part of the original GraphQL query language. The abstract content types that start with an I define common fields.

Definitions

The following definitions explain each piece of a where filter so you can compose conditions accurately. In Optimizely Graph, certain fields are universally available as part of the query language, especially those defined by abstract content types that usually start with I. These fields provide standard filtering capabilities across various content types, ensuring flexibility and consistency in query formulation.

{filter_condition} – Defines the conditions to meet for Optimizely Graph to return the result. There is no limit to the number of predicates that you can include in a filter_condition.

predicate – A field name.

filter_operators – Matching functions (called operators) that operate specifically on string, number, date, and Boolean values, and operator options such as boost and synonyms that work together with the operators.

expression – A string, numeric, enumerated, or Boolean value.

📘 Note Optimizely Graph supports using the _modified extend argument to query content. Whenever content syncs to the service, Optimizely Graph marks that content with the _modified extend field equal to now().

For numeric filtering (for example, gt, gte, lt, lte) with floating point numbers, Optimizely Graph supports accurate filtering up to three decimals.

For example, gt: 18.524 is accurate. However, for gt: 18.5243, the remainder decimals after three decimals are ignored.

filter_operators	Description	String type	SearchableString type	Number type	Date type	Boolean type
eq	Tests equality between two literal expressions. Can be case-insensitive.	Yes	Yes	Yes	Yes	No
noteq	Tests whether two literal expressions are not equal to each other. Can be case-insensitive.	Yes	Yes	Yes	Yes	No
like	Tests whether a specific character string matches a specified pattern.	Yes	Yes	No	No	No
contains	Filters fields that contain character-based data for precise or less precise matches to single words and phrases.	No	Yes	No	No	No
gt	Tests whether one expression is greater than another.	No	No	Yes	Yes	No
gte	Tests whether one expression is greater than or equal to another.	No	No	Yes	Yes	No
lt	Tests whether one expression is less than another.	No	No	Yes	Yes	No
lte	Tests whether one expression is less than or equal to another.	No	No	Yes	Yes	No
exist	Tests whether a specific expression exists.	Yes	Yes	Yes	No	Yes
startsWith	Tests whether a specific expression starts with a specific pattern.	Yes	Yes	No	No	No
endsWith	Tests whether a specific expression ends with a specific pattern.	Yes	No	No	No	No
in	Tests whether a specific literal expression is in an array.	Yes	Yes	Yes	No	No
notIn	Tests whether a specific literal expression is not in an array.	Yes	Yes	Yes	No	No
boost	Boosts a by a positive number, so certain results can be ranked higher when sorting by RELEVANCE.	Yes	Yes	Yes	Yes	Yes
synonyms	Expands the expression with synonyms stored in the system.	Yes	Yes	No	No	No

Examples

The following examples show how to use some common filter conditions in the where clause.

Where with eq operators

The following query returns the BiographyPage whose Name field equals Alan Turing in the English locale.

{
  BiographyPage(where: {
    Name: {
         eq: "Alan Turing"
     }
  }, locale: [en]) {
    Name
    Language {
      Name
      DisplayName
    }
  }
}

Query with dates

Date queries in Optimizely Graph are flexible. You can query for exact date values indexed in the ISO 8601 standard, supply the same date in a different format, or filter on an open or closed date range.

Query for exact date values indexed in the ISO 8601 standard.

{
  BiographyPage(where: { Born: { eq: "1983-11-14T00:00:00Z" } }) {
    items {
      Name
      Born
    }
    total
  }
}

Write the same date query in a different format, but specify the time zone as UTC. Otherwise, Optimizely Graph converts the date value to a date value from the local system, resulting in no matches.

{
  BiographyPage(where: { Born: { eq: "11/14/1983 00:00:00 AM UTC" } }) {
    items {
      Name
      Born
    }
    total
  }
}

Date queries also support time ranges with an optional time component. The following query returns results where the value for Born is equal to or greater than "1947-07-30".

{
  BiographyPage(where: { Born: { gte: "1947-07-30" } }) {
    items {
      Name
      Born
    }
    total
  }
}

Where with multiple filter conditions

The following query combines two filter conditions in a single where clause to return BiographyPage items whose Name is Alan Turing and whose language display name is English.

{
  BiographyPage(where: {
      Name: {
        eq: "Alan Turing"
      }
      Language: {
        DisplayName: {
          eq: "English"
        }
      }
  }, locale: [en]) {
    Name
    Language {
      Name
      DisplayName
    }
  }
}

📘 Note The AND operator is the default logical operator that applies to the group of multiple filtered conditions, so you can understand the previous query like the following:

if (Name == "Alan Turing" AND Language.DisplayName == "English")

See Logical connectors for information about logical operators AND, OR, and NOT.

Where with _modified extend date argument

The _modified field stores the date and time when content was created, updated, or deleted in the service. The value in _modified is not the same as the created or saved value on the content.

Use the _modified field to perform a delta import of content from the service. For example, return content that was modified after (gt) 2023-09-13T04:36:14Z. Filter by the _modified field together with cursor to perform the delta import of content from the service.

{
  BiographyPage(where: {
      _modified: {
        gte: "2021-09-13T04:36:14Z"
      }
  }, locale: [en]) {
    Name
    Language {
      Name
      DisplayName
    }
  }
}
