Real-Time Audiences for Feature Experimentation for Agent

9 min

After creating a new audience with Real-Time Audiences for Feature Experimentation and assigning it to a flag rule, you can integrate the audience segments in your Agent instance.

Fetch qualified segments

You can fetch all qualified audience segments for the user ID by calling the decide endpoint:

POST /v1/decide?keys={flagKey}

with fetchSegments set to True:

For example:

#===================================
# Fetch qualified audience segments
#===================================

params = {"keys": "my-feature-flag"}
payload = {
    "userId": "fs-id-123",
    "decideOptions": [
        "ENABLED_FLAGS_ONLY",
        "INCLUDE_REASONS"
    ],
    "userAttributes": {},
    "fetchSegments": True,
}

response = s.post(url = 'http://localhost:8080/v1/decide', params=params, json=payload)

print(response.json())

Example response:

{
    "variationKey": "variation_b",
    "enabled": true,
    "ruleKey": "ab_experiment",
    "flagKey": "my-feature-flag",
    "userContext": {
        "userId": "test-user",
        "attributes": {}
    },
    "reasons": ["Audiences for experiment ab_experiment collectively evaluated to true."]
}

ODP GraphQL API

<https://api.zaius.com/v3/graphql>

ODP public API key = "ODP_API_KEY"

Example GraphQL Request: fetch information with fs_user_id for ["has_email", "has_email_opted_in", "push_on_sale"] segments.

Headers

Content-Type: application/json

x-api-key: <odp_api_key>

query MyQuery {
    customer(vuid: "d66a9d81923d4d2f99d8f64338976322") {
     audiences(subset:["has_email", "has_email_opted_in", "push_on_sale"]) {
       edges {
         node {
           name
           state
         }
       }
     }
    }
    }

Example GraphQL Responses

  {
    "data": {
     "customer": {
       "audiences": {
         "edges": [
           {
             "node": {
               "name": "has_email",
               "state": "qualified",
             }
           },
           {
             "node": {
               "name": "has_email_opted_in",
               "state": "qualified",
             }
           },
            ...
         ]
       }
     }
    }
    }

{
    "errors": [
    {
       "message": "Exception while fetching data (/customer) : java.lang.RuntimeException:
       could not resolve _fs_user_id = asdsdaddddd",
       "locations": [
        {
           "line": 2,
           "column": 3
        }
       ],
       "path": [
         "customer"
       ],
       "extensions": {
         "classification": "InvalidIdentifierException"
        }
    }
    ],
    "data": {
     "customer": null
    }
}

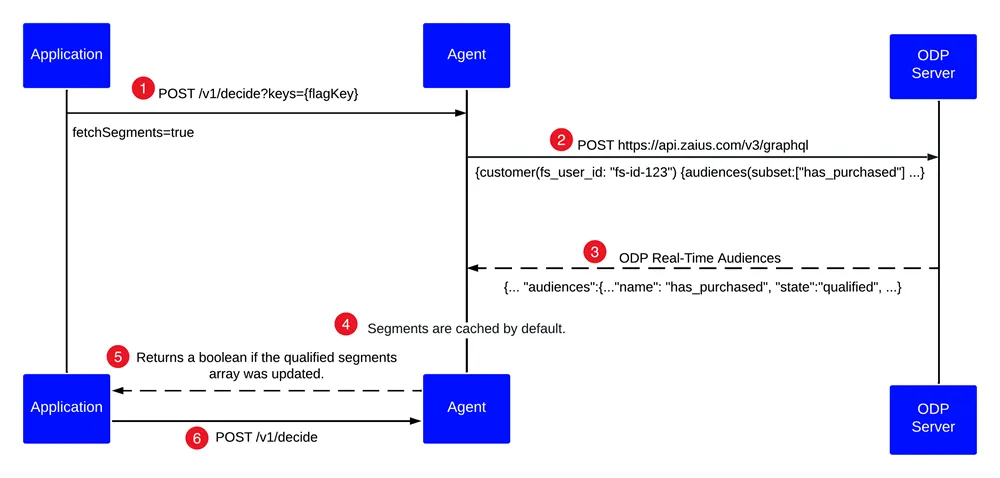

The network calls between your application, Agent, and the ODP server when fetching all qualified audience segments is demonstrated in the following diagram:

Your application makes a POST request to the /v1/decide endpoint with fetchQualifiedSegments=true.

The Agent makes a GraphQL call to ODP to fetch segments the user ID qualifies for.

ODP responds with the qualified audience segments.

Agent automatically caches the fetched segments mapping the user ID to the qualified segments.

The /v1/decide endpoint call with fetchQualifiedSegments=true returns a boolean if the qualified segments array was updated.

Call the /v1/decide endpoint to get the flag decision for a given user, a decision object that contains the flag's status (enabled or disabled), and the assigned variation key.

OdpSegmentManager

Agent has an OdpSegmentManager module which manages a segments cache that is shared for all user contexts. The cache is in memory (not persistent), so it resets when the application is terminated/device is rebooted.

Some more specifics about the cache:

Cache stores mapping of user IDs to segments.

Agent calls the ODP server on cache miss/expiration.

Cache is least recently used (LRU).

Cache is expired on timeout.

Both cache size and timeout are configurable (default values provided).

Caching is enabled by default and can be disabled by setting the size to zero.

Can use custom cache such as redis instead of default implementation (see segmentsCache section of Agent config.yaml).

If you would like to bypass caching, you can add the following options to the payload JSON object:

"fetchSegmentsOptions":["IGNORE_CACHE"] – Bypass the segments cache for lookup and save.

"fetchSegmentsOptions":["RESET_CACHE"] – Reset the segments cache.

For example:

params = {"keys": "my-feature-flag"}
payload = {
    "userId": "test-user",
    "decideOptions": [
        "ENABLED_FLAGS_ONLY",
        "INCLUDE_REASONS"
    ],
    "userAttributes": {},
    "fetchSegments": True,
    "fetchSegmentsOptions":["RESET_CACHE"]
}

response = s.post(url = 'http://localhost:8080/v1/decide', params=params, json=payload)

print(response.json())

Send ODP Events

Send data to the ODP server by calling the send-odp-eventendpoint:

POST /v1/send-odp-event

You can then use this data to analyze user behavior and optimize experiences across different channels and touchpoints.

Use the send-odp-event endpoint to

Merge or stitch users together and determine which event is associated with which customer.

Send various types of events and actions, such as pageviews, clicks, form submissions, and others. You can include additional data to provide more context and information about the event being tracked.

For example, by connecting an email address identifier with a fs_user_id identifier, you can use the send-odp-event endpoint to send events that are associated with both identifiers. This enables you to track and analyze the behavior of a specific user across different touchpoints and devices.

You cannot create or update user profile data like name or address with the send-odp-event endpoint. Instead, you can use the ODP Create and update customers API endpoint or ODP UI to manage customer profiles.

Parameter	Type	Description
`action` _required_	string	Specifies the subcategory of the event type, used to track the app and user lifecycle. The call fails with the following error: `ODP action is not valid (cannot be empty)` if null or empty.
`type`	string	The type of event to be sent. Set to `fullstack`, if not specified.
`identifiers`	Dictionary\	A key-value map of user identifiers. At least one key-value pair is required.
`data`	Dictionary\	The event data in a key-value map. The value can be any type (string, number, or boolean.) You can use null values, but they become empty strings. The Python SDK adds default event data to the given data dictionary. Sending the same key when creating your Dictionary overwrites the default data values. "idempotence\_id":\ "data\_source\_type":"sdk" "data\_source":"python-sdk" "data\_source\_version":\

#============================
# Send ODP event
#============================
payload = {
    "type": "test_type",
    "data": {
        "idempotence_id": "abc-1234",
        "data_source_type": "agent",
    },
    "identifiers": {"user_id": "test_user_1"},
    "action": "test_action",
}

response = s.post(url = 'http://localhost:8080/v1/send-odp-event', params={}, json=payload)

print(response.json())

Example of successful response:

{
    "success": true
}

This response only indicates that the event was queued in the event queue. It is not a guarantee that event was delivered.

If the event was sent, meaning it has left the event queue, then there should be no errors logged. If unsuccessful, then error should be visible in Agent logs, for example 400 BadRequest.

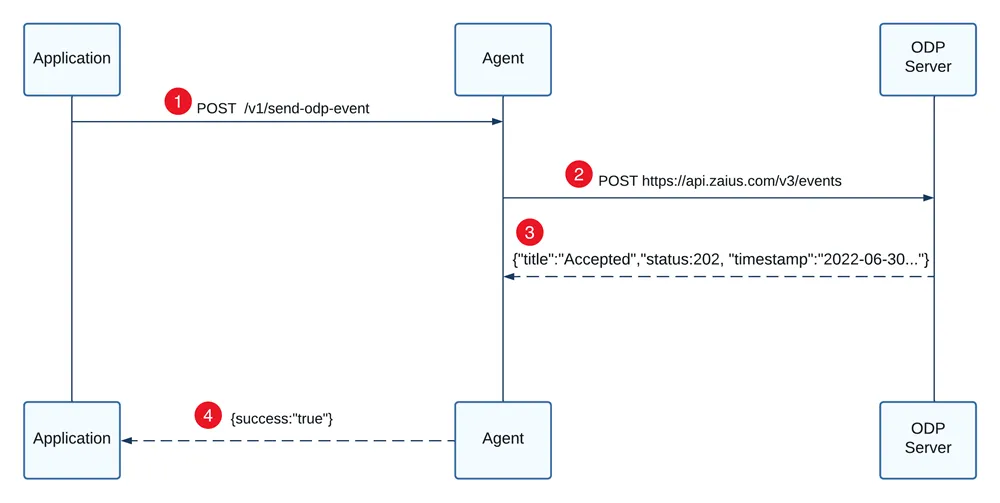

The network calls between your application, Agent, and the ODP server when sending ODP events is demonstrated in the following diagram:

POST request is made to /v1/send-odp-event.

Agent makes a POST request to ODP.

ODP responds with acknowledgement or relevant error.

Agent responds to application with success acknowledgement or relevant error.
