Use webhooks to automate the content lifecycle
A webhook automates your content lifecycle by sending event data from your CMS (SaaS) instance to another system when your content changes or a content import finishes. When a content manager publishes a page, CMS (SaaS) can notify Mark (Optimizely Agent Platform), a translation service, or an endpoint a developer builds. The receiving system reacts to the event instead of repeatedly asking CMS (SaaS) whether anything changed.
Each webhook has an endpoint URL, one or more event types, and optional filters. When an event occurs, CMS (SaaS) sends an HTTP POST request containing the event data to that endpoint.
Go to Settings > Webhooks to create and manage webhooks.
The CMS (SaaS) REST API performs the same operations. See Subscribe to events with webhooks for the endpoints, event type reference, and payload schemas.
Create a webhook

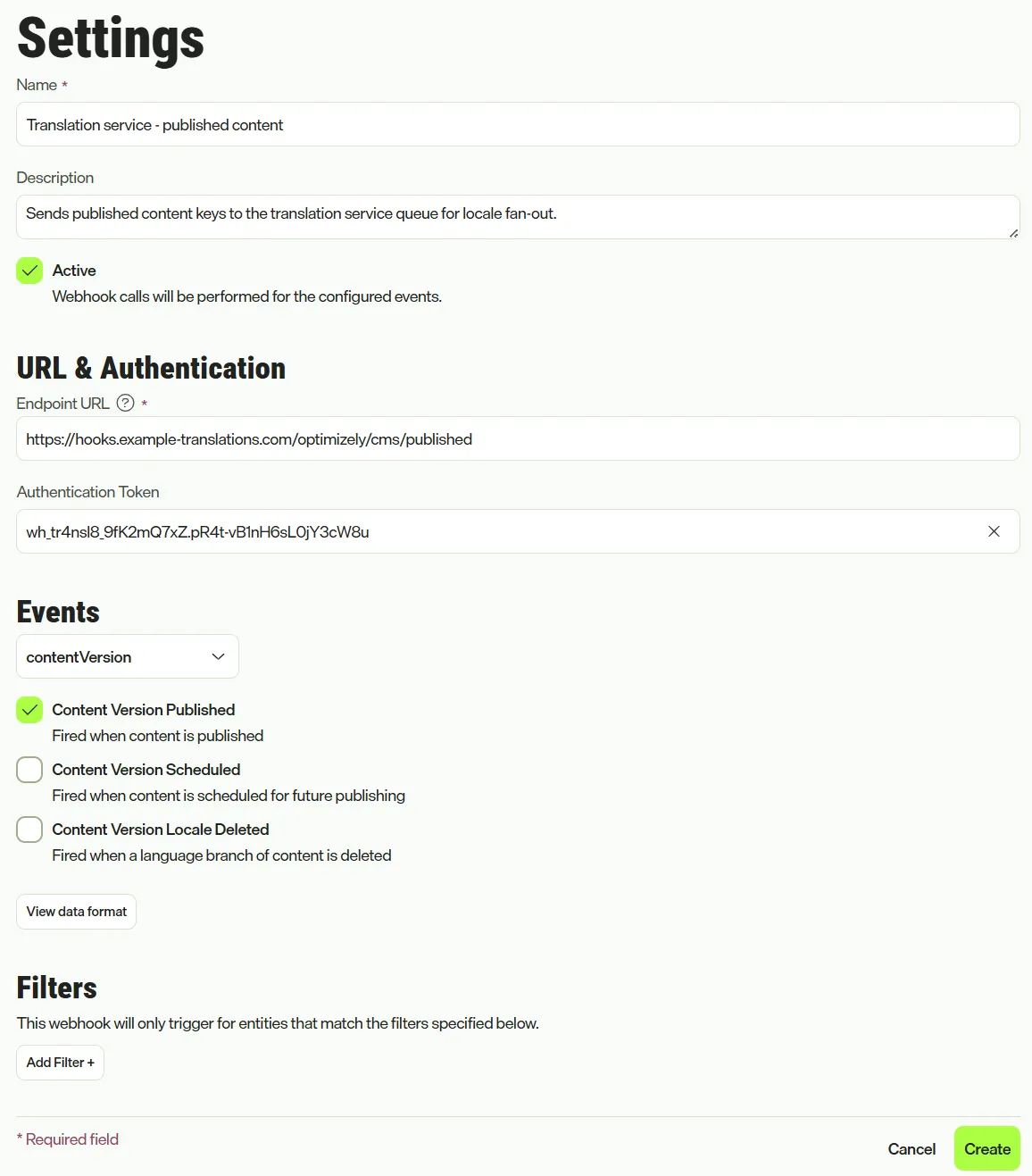

- Go to Settings > Webhooks.
- Click Create Webhook.
- Complete the following fields:
- Name – Enter a name that identifies the webhook in the list. Required. Up to 255 characters.
- Description – Enter an explanation of what the webhook is for. Up to 512 characters.
- Active – Select to send data to the endpoint URL for the configured events. Clear this checkbox to stop sending data without deleting the webhook.
- Endpoint URL – Enter the address that receives the HTTP POST requests. It must be a valid URL.
- Add Authentication Token – Click to authenticate the requests your endpoint receives and enter an Authentication Token. CMS (SaaS) sends the token as a bearer token in the Authorization header of every request. Your endpoint uses it to confirm that the request came from CMS (SaaS). The token must be a valid HTTP bearer token value.
- Event types – Select an event category from the drop-down list, and then select the event types the webhook subscribes to. You can only select event types from one category per webhook. See Select event types.
- Filters – (Optional) Add filters so the webhook only triggers for entities that match the values you specify. See Filter events.
- Click Create.
Your endpoint must respond to the validation handshake that CMS (SaaS) sends and handle the incoming events. CMS (SaaS) saves the webhook only after the endpoint passes the handshake. See Verify the endpoint.
Select event types
Event types are the events in CMS (SaaS) that can send data to a webhook. They are grouped into categories, where each category is the type of entity the event applies to.
A webhook subscribes to events from one category and to one version of that category. If you select events from a second category, CMS (SaaS) displays a warning. It removes the events from the other category when you save.
The following categories and events are available.
Content
Events for a content item. Content that an import creates does not send Content Created. See Import.
Event | Event type | Fires when |
|---|---|---|
Content Created | content:preview1:created | Content is created. |
Content Moved | content:preview1:updated | Content moves to a different parent, excluding a move to the wastebasket. |
Content Deleted | content:preview1:deleted | Content is deleted, either moved to the wastebasket or deleted permanently. |
Content version
Events for a specific version of a content item. Content that an import publishes or schedules does not send Content Version Published or Content Version Scheduled. See Import.
Event | Event type | Fires when |
|---|---|---|
Content Version Published | contentVersion:preview1:published | Content is published. |
Content Version Scheduled | contentVersion:preview1:scheduled | Content is scheduled for publishing at a future date. |
Content Version Locale Deleted | contentVersion:preview1:localeDeleted | A language branch of content is deleted. |
Display template
Events for a display template.
Event | Event type | Fires when |
|---|---|---|
Created | displayTemplate:v1:created | A display template is created. |
Updated | displayTemplate:v1:updated | An existing display template is updated. |
Deleted | displayTemplate:v1:deleted | An existing display template is deleted. |
Webhook
Events for the webhooks themselves, so you can track configuration changes.
Event | Event type | Fires when |
|---|---|---|
Created | webhookSubscription:v1:created | A webhook is created. |
Updated | webhookSubscription:v1:updated | An existing webhook is updated. |
Deleted | webhookSubscription:v1:deleted | An existing webhook is deleted. |
Import
Events for a content import. Use the Completed event to start follow-up work, such as rebuilding a cache or notifying another system, after the imported content is in place.
Event | Event type | Fires when |
|---|---|---|
Completed | import:preview1:completed | A content import finishes. |
CMS (SaaS) sends one event when an import finishes, whether you import data from the UI or through the REST API. The event data includes how many content items, content types, blueprints, and other entities the import brought in, and whether the import logged any errors.
The import does not send content events for each item it creates, publishes, or schedules, so a large import does not flood your endpoint with one event per item.
CMS (SaaS) does not send the event when you only verify a file with Upload and Verify File. It also does not send the event when an import stops early. An import stops early when someone cancels it or a content item or file fails to import. The Import category has no fields to filter on.
View the event data format
Inspect the data your endpoint receives before you subscribe to a category. The display shows which fields to read, and which fields you can filter on.

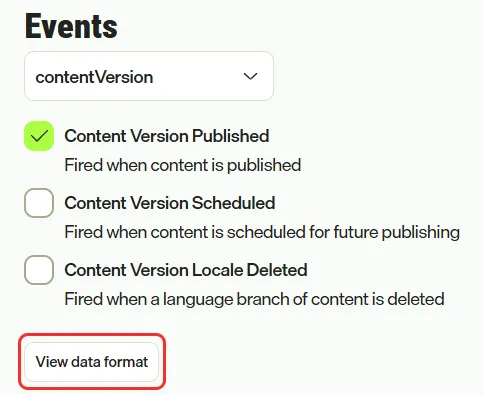

- Select a category from the drop-down list in the Events section when creating a webhook.
- Select View data format.

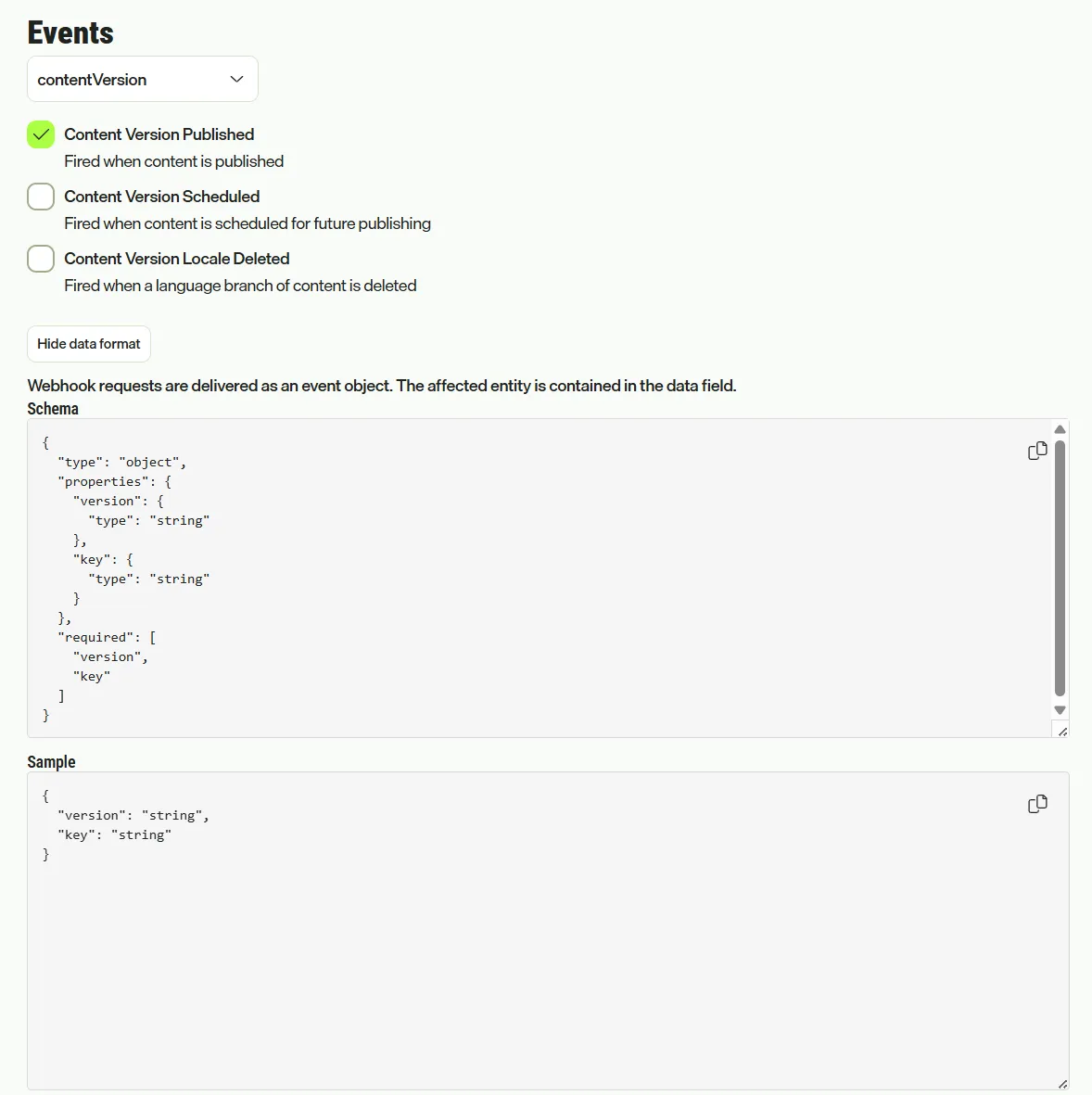

CMS (SaaS) displays the Schema for the category and a Sample when one is available. You can copy either block.
Webhook requests are delivered as an event object. The affected entity is contained in the data field.
- Select Hide data format to close the display.
Filter events
Filters reduce the amount of traffic your endpoint handles by sending only the events you care about. A webhook with filters only triggers for entities that match the filters you specify.
Filters apply to the data fields of the selected category. The fields you can filter on therefore depend on which category the webhook subscribes to. Use View the event data format to see the fields for a category.

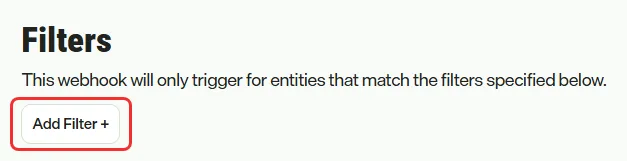

- Click Add Filter in the Filters section when creating a webhook.
- Select a Key. This is the data field to match on.
- Select an Operator. See Filter operators.
- Enter a Value, and then press Enter to add it. Repeat to add more values. Operators that compare a range use separate From and To fields, and you select Add to add the range.
- Repeat to add more filters.
To remove a filter, select its delete icon.
The following limits apply to filters:
- A maximum of 20 values across the filters on a webhook.
- A maximum of 475 characters for each value.
- A key cannot contain spaces, start or end with a period, or contain consecutive periods.
If you change the category the webhook subscribes to, CMS (SaaS) asks you to confirm. The existing filters apply to the fields of the previous category, so CMS (SaaS) replaces them.
Filter operators
Operator | Matches when the field |
|---|---|
StringIn | Equals one of the values. |
StringNotIn | Equals none of the values. |
StringContains | Contains one of the values. |
StringNotContains | Contains none of the values. |
StringBeginsWith | Begins with one of the values. |
StringNotBeginsWith | Begins with none of the values. |
StringEndsWith | Ends with one of the values. |
StringNotEndsWith | Ends with none of the values. |
NumberIn | Equals one of the numbers. |
NumberNotIn | Equals none of the numbers. |
NumberInRange | Falls within one of the ranges. |
NumberNotInRange | Falls outside every range. |
NumberLessThan | Is less than the number. |
NumberLessThanOrEquals | Is less than or equal to the number. |
NumberGreaterThan | Is greater than the number. |
NumberGreaterThanOrEquals | Is greater than or equal to the number. |
BoolEquals | Equals the selected boolean value. |
IsNullOrUndefined | Has no value. |
IsNotNull | Has a value. |
Verify the endpoint
CMS (SaaS) confirms that your endpoint agrees to receive events before it sends any. When you create a webhook or change its endpoint URL, CMS (SaaS) runs a validation handshake with the endpoint. The handshake follows the abuse protection mechanism in the CloudEvents 1.0 HTTP webhook specification. CloudEvents is an open specification for describing event data, and its abuse protection mechanism prevents a sender from delivering events to an endpoint that did not agree to receive them.
Your endpoint must handle the following HTTP methods:
- OPTIONS – Responds to the validation handshake.
- POST – Receives events. CMS (SaaS) sends each event as a JSON object in the CloudEvents 1.0 format.
How the handshake works
Your endpoint must answer the handshake before CMS (SaaS) saves the webhook. The handshake runs in the following order:
The handshake has the following steps:
- CMS (SaaS) sends an HTTP OPTIONS request to the endpoint URL. The WebHook-Request-Origin header in the request identifies the sender.
- Your endpoint must respond with the following:
- HTTP status code 200.
- A WebHook-Allowed-Origin header. Set it to the value of the WebHook-Request-Origin header, or to * to accept events from any origin.
- (Optional) An Allow header that includes POST.
- (Optional) A WebHook-Allowed-Rate header that sets how many requests per minute your endpoint accepts.
If the handshake succeeds, CMS (SaaS) saves the webhook and starts sending events.
The handshake fails when the endpoint returns a status code other than 200, omits the WebHook-Allowed-Origin header, or does not respond in time. When the handshake fails, CMS (SaaS) displays a message that the URL could not be validated and does not save the webhook. If you were changing the endpoint URL of an existing webhook, the webhook keeps its previous URL.
Verification is tied to the endpoint URL, so CMS (SaaS) runs the handshake again whenever you change the URL. If the webhook uses an authentication token, enter a new token when you change the URL.
Handshake response examples
The following examples respond to the handshake. Each example returns status code 400 when the WebHook-Request-Origin header is missing, and accepts up to 120 requests per minute.
The following example uses Node.js with Express:
app.options('/webhook', (req, res) => {
const origin = req.headers['webhook-request-origin'];
if (!origin) return res.status(400).end();
res.set('WebHook-Allowed-Origin', origin);
res.set('WebHook-Allowed-Rate', '120');
res.status(200).end();
});The following example uses an ASP.NET Core minimal API in C#:
app.MapMethods("/webhook", new[] { "OPTIONS" }, (HttpContext context) =>
{
var origin = context.Request.Headers["WebHook-Request-Origin"].FirstOrDefault();
if (origin is null)
{
return Results.BadRequest();
}
context.Response.Headers["WebHook-Allowed-Origin"] = origin;
context.Response.Headers["WebHook-Allowed-Rate"] = "120";
return Results.Ok();
});Manage webhooks

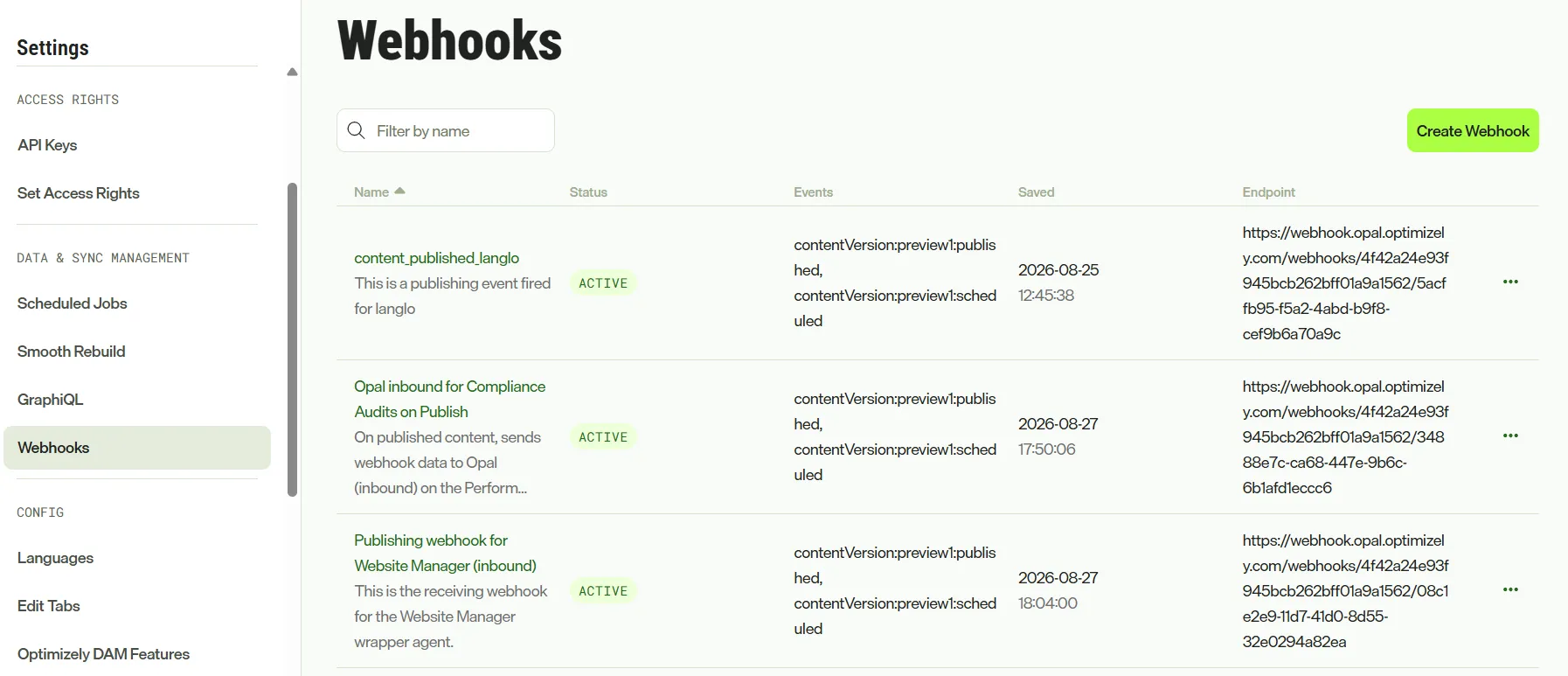

The Webhooks page lists your webhooks with their endpoint, the number of events and filters, and their status. Enter a name in Filter by name to narrow the list.
- To edit a webhook, select it in the list. To change the endpoint URL or the authentication token of a webhook that uses a token, select Edit for the field.
- To stop a webhook without deleting it, clear the Active checkbox and select Save. Its status changes to Inactive.
- To delete a webhook, open it, select Remove under Remove Webhook, and confirm. This permanently removes the webhook and cannot be undone.
Delivery and retries
Optimizely provisions and manages the event delivery infrastructure for CMS (SaaS) webhooks. This includes the retries for failed deliveries, and the dead-letter queue for events that cannot be delivered. These settings are not configurable.
Because a failed delivery is retried, your endpoint can receive the same event more than once. Build your endpoint so that handling an event twice has the same result as handling it one time.
Mark integration example
Mark is an agent orchestration platform. Connecting a webhook to a Mark workflow agent lets the agent run whenever content changes, rather than waiting for someone to start it. The agent can then act on the content, such as routing it for translation or triggering a downstream service.
The walkthrough covers the Mark side and the CMS (SaaS) side, including the shared secret that both products must set to the same value. See Send content events to Mark with webhooks.
